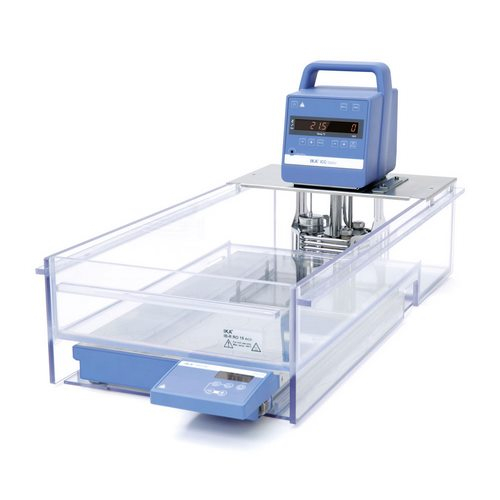

Buy Ika 0010002472, ICC Basic Immersion Circulator, Bath, Stirrer

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Type:: Type: Basic

0010002472 Includes Only:

ICC basic
IB R RO 15 eco
RO 15 magnetic stirrer
BL.ICC large bridge

IKA facilitates the configuration of your temperature control system by offering "ready for connection" packages with all necessary accessories. Circulating bath with 15 stirring positions for glass beakers up to 250 ml. Maximum Temperature 100°C. Immersion Depth: 35-75 mm. Max. temperature in the plastic bath ("eco" series): 100°C (water only).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Appliance type	Compact immersion circulators
Class designation acc. DIN 12876	III
Identification according to DIN 12876	FL
Heat output	2000 W
Working temperature	room temp. +10K at1000rpm - 80 °C
Operating temperature min. (with external cooling)	-20 °C
Temperature display	yes
Temperature control	PT 100
Working temperature sensor	PT 100
Safety temperature sensor	PT1000
Working temperature display	LED
Safety temperature display	LED
Temperature stability DIN 12876	0.02 ±K
Display resolution	0.1 K
Display for operation with ext. sensor	yes
Set temperature resolution	0.1 ±K
Warning function optical	yes
Warning function acoustic	yes
Warning function excess temperature	yes
Adjustable safety circuit	0 - 160 °C
Sub-level protection	yes
Over-level protection	yes
Pump type	Pressure- / suction pump
Pump capacity adjustable	yes
Pump pressure max. (0 liters discharge flow)	0.3 bar
Pressure pump (suction side) (0 liter flow)	0.2 bar
Flow rate max. (0 bar back pressure)	18 l/min
Bath depth min.	150 mm
Width including bath	333 mm
Depth including bath	700 mm
Height including bath	362 mm
Width bath opening	317 mm
Depth bath opening	98 mm
Calibration option	yes
Appliance fastener	clamp
Technical data complies with the standard	DIN 12876
Permissible ON time	100 %
Dimensions (W x H x D)	145 x 340 x 200 mm
Weight	22.23 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	yes
USB interface	yes
Voltage	230 / 115 V
Frequency	50/60 Hz
Power input	2100 W

Product Details

Appliance type	Compact immersion circulators
Class designation acc. DIN 12876	III
Identification according to DIN 12876	FL
Heat output	2000 W
Working temperature	room temp. +10K at1000rpm - 80 °C
Operating temperature min. (with external cooling)	-20 °C
Temperature display	yes
Temperature control	PT 100
Working temperature sensor	PT 100
Safety temperature sensor	PT1000
Working temperature display	LED
Safety temperature display	LED
Temperature stability DIN 12876	0.02 ±K
Display resolution	0.1 K
Display for operation with ext. sensor	yes
Set temperature resolution	0.1 ±K
Warning function optical	yes
Warning function acoustic	yes
Warning function excess temperature	yes
Adjustable safety circuit	0 - 160 °C
Sub-level protection	yes
Over-level protection	yes
Pump type	Pressure- / suction pump
Pump capacity adjustable	yes
Pump pressure max. (0 liters discharge flow)	0.3 bar
Pressure pump (suction side) (0 liter flow)	0.2 bar
Flow rate max. (0 bar back pressure)	18 l/min
Bath depth min.	150 mm
Width including bath	333 mm
Depth including bath	700 mm
Height including bath	362 mm
Width bath opening	317 mm
Depth bath opening	98 mm
Calibration option	yes
Appliance fastener	clamp
Technical data complies with the standard	DIN 12876
Permissible ON time	100 %
Dimensions (W x H x D)	145 x 340 x 200 mm
Weight	22.23 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	yes
USB interface	yes
Voltage	230 / 115 V
Frequency	50/60 Hz
Power input	2100 W

Note

Note: Please read description carefully. Do not base your order on the picture presented.
