Buy Ika 0010000637, S 50 KG - HH - G 45 G, Dispersing Element, 45 mm

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

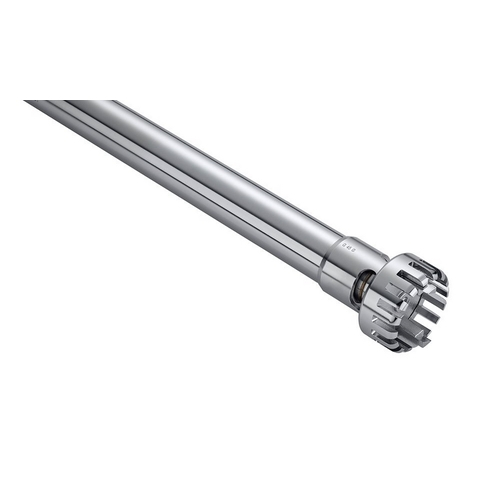

S 50 KG - HH - G 45 G, Dispersing Element, 45 mm

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Working range	0.5 - 20 l
Stator diameter	45 mm
Rotor diameter	36 mm
Gap between rotor and stator	0.5 mm
Min. / max. immersion depth	70 / 260 mm
Shaft length	300 mm
Materials in contact with medium	FFPM / SIC, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Max. temperature	180 °C
Sterilization methods	wet chemical
Min. vacuum	1 mbar
Max. pressure	6 bar

Working range	0.5 - 20 l
Stator diameter	45 mm
Rotor diameter	36 mm
Gap between rotor and stator	0.5 mm
Min. / max. immersion depth	70 / 260 mm
Shaft length	300 mm
Materials in contact with medium	FFPM / SIC, AISI 316L
pH range	2 - 13
Suitable for solvents	yes
Max. temperature	180 °C
Sterilization methods	wet chemical
Min. vacuum	1 mbar
Max. pressure	6 bar

Note: Please read description carefully. Do not base your order on the picture presented.
