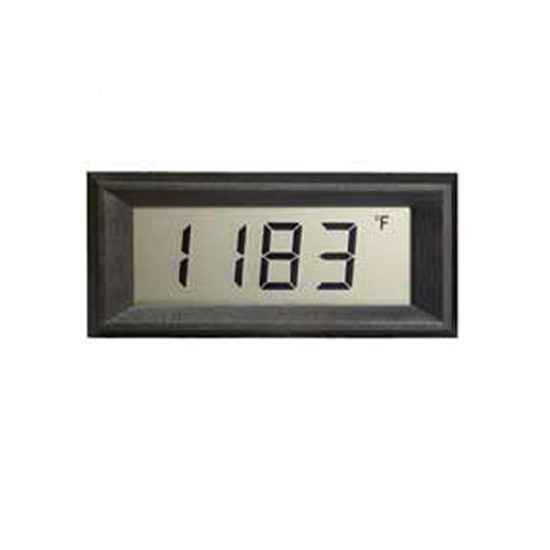

Hoyt HVPI-3PE DC Voltmeter 3.5 LCD, No Backlighting

Backlight: No Backlighting, Power: With Power Engineering Units
  • Brand Hoyt
  • Part # HVPI-3PE
  • Model # HVPI-3E
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Backlight:
Backlight: No Backlighting
Power:
Power: With Power Engineering Units

Features

  • Low-cost, high-performance replacement for many OEM DPMs.
  • Snap-in bezel mount eliminates mounting hardware.
  • Resistant to RF and EMI.
  • 3-1/2 digits with high-contrast LCD.
  • 12V or 24V DC voltage-powered.
  • User-selectable, displayed engineering units.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Display
Digits3.5 digits (±1999 counts)
Type0.45" (11.4 mm) 7 segment high contrast LCD
Backlighting OptionalNo Backlighting
Polarityautomatic, "-" displayed
Annunciators°F, °C, PSI, %, user-selectable or V, A, KW, PF
Decimal Points3 position, user selectable
Overrangethree lower order digits blank for inputs >1999 & < -1999
Inputs
Voltage Ranges0-10 VDC, 0-5 VDC or 0-200 mV DC
Configurationsingle ended
Impedance390KΩ min
Performance
Accuracy±(0.1% fs + 2 count)
Conversion Rate3 per second
Normal Mode Rejection>30 dB / 60 Hz.
Adjustmentsspan (gain) (2) (10V and 5V) and zero (offset)
Warmup10 minutes typical
Temperature Coeff.± 100 ppm per °C typical
Offset Range-1999 to +1999
Gain Range1-2000 counts above adjusted zero
Power Supply12 VDC or 24 VDC regulated (selectable)
Optional Backlight24 VDC at 35 mA typical
Environment
Operating Range0 to 50 °C
Storage Range-10 to 60 °C.
MountingSnap-in Bezel mount
Connection4 screw terminal (6 with backlight)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Display
Digits3.5 digits (±1999 counts)
Type0.45" (11.4 mm) 7 segment high contrast LCD
Backlighting OptionalNo Backlighting
Polarityautomatic, "-" displayed
Annunciators°F, °C, PSI, %, user-selectable or V, A, KW, PF
Decimal Points3 position, user selectable
Overrangethree lower order digits blank for inputs >1999 & < -1999
Inputs
Voltage Ranges0-10 VDC, 0-5 VDC or 0-200 mV DC
Configurationsingle ended
Impedance390KΩ min
Performance
Accuracy±(0.1% fs + 2 count)
Conversion Rate3 per second
Normal Mode Rejection>30 dB / 60 Hz.
Adjustmentsspan (gain) (2) (10V and 5V) and zero (offset)
Warmup10 minutes typical
Temperature Coeff.± 100 ppm per °C typical
Offset Range-1999 to +1999
Gain Range1-2000 counts above adjusted zero
Power Supply12 VDC or 24 VDC regulated (selectable)
Optional Backlight24 VDC at 35 mA typical
Environment
Operating Range0 to 50 °C
Storage Range-10 to 60 °C.
MountingSnap-in Bezel mount
Connection4 screw terminal (6 with backlight)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
