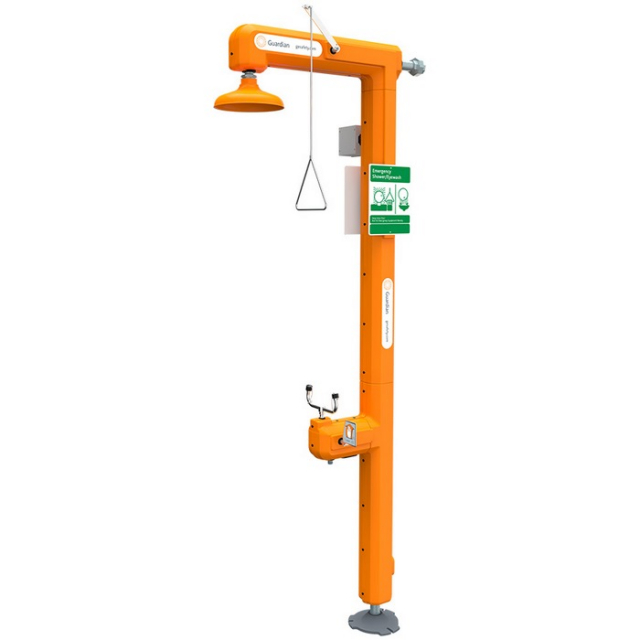

Guardian Equipment GFR3101 Heated Safety Station, Eyewash, Top Inlet

Guardian Equipment, GFR3101, Heated Safety Station with Eyewash, Top Inlet, Rated for Class I, Division 2 Environment, Single Pole, Double Throw Flow Switch For Remote Sensing Capability

Features:

• Application: Electric heat-traced stations prevent freezing even in extreme conditions. Thermostat regulated units are heated by self-limiting heat-tracing cable wrapped around internal pipe. Units are intended for cold weather use down to -40°F. See 'Tempering Valves' section to ensure tepid water compliance with ANSI Z358.1-2014.
• Heating Cable: Self-regulated with external termination guards. Thermostat activates when internal piping temperature falls below 75°F. FM, UL, and CSA approved for Class I, Division 2, Groups B, C, and D.
• Electrical System: Unit is fully wired at factory. Junction box and components rated for Class I, Division 2, Groups B, C, and D. Requires 120 VAC single phase power supply.
• Jacket/Insulation: UV-resistant orange ABS plastic with polyethylene foam insulation. Jacket sections secured with removable stainless steel screws for easy maintenance.
• Shower Head: 10" diameter orange ABS plastic with 20 GPM flow control.
• Shower Valve: 1" IPS brass stay-open ball valve. US-made with brass ball and PTFE seals. Includes stainless steel actuating arm and 29" stainless steel pull rod.
• Spray Head Assembly: Freeze-resistant with float-off dust covers and internal flow control.
• Eyewash Valve: 1/2" IPS brass three-way self-draining stay-open ball valve. US-made with brass ball and PTFE seals. Includes 1/2" NPT port to drain water from spray heads after use.
• Pipe and Fittings: Schedule 40 galvanized steel.
• Supply: 1-1/4" NPT female top inlet.
• Sign: ANSI-compliant identification sign.
• Quality Assurance: Factory tested prior to shipment. Ships fully assembled and crated.

For more information, please see Data Sheet
