Guardian Equipment GBF2162 Safety Station with Drain Pan and Drain

Guardian, GBF2162, Safety Station with Drain Pan and Daylight Drain, Recess Mounted Shower Head

Features:

• ADA compliance: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons.
• Shower head: 10" diameter stainless steel with 20 GPM flow control and flange for flush mounting in ceiling.
• Shower valve: 1" IPS brass stay-open ball valve with stainless steel "panic bar" actuator.

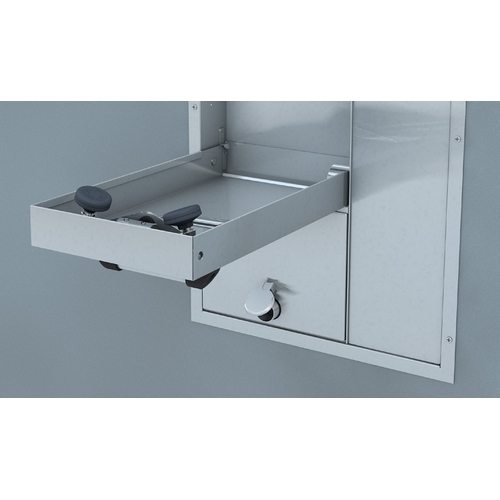

• Cover/drain pan: 16 gauge stainless steel combination cover and drain pan. Grasping "panic bar" handle and opening cover pulls spray head assembly down from vertical to horizontal position, activating water flow. While unit is in operation, waste water is collected in drain pan and re-directed to daylight drain for drainage out the front of unit. Unit remains in operation until cover is returned to closed position.
• Eye/ Face wash spray head assembly: Two FS-Plus spray heads mounted on supply arms. Each spray head has individually adjustable flow control and filter to remove impurities from water flow.
• Eye/ Face wash valve: 1/2" IPS brass plug-type valve with O-ring seals. Furnished with in-line strainer to protect valve from debris and foreign matter.
• Mounting: 16 gauge stainless steel cabinet with flange featuring 3/8" return for recessed mounting in wall. Unit fits in standard 3-5/8" deep wall.
• Supply: 1" NPT female inlet.
• Waste: 1" IPS stainless steel drain elbow on front of unit.
• Sign: ANSI-compliant identification sign.
• Quality assurance: Unit is completely assembled and water tested prior to shipment.

Application:

Recessed barrier-free Eye/ Face wash and shower safety station with ceiling mounted exposed shower head and drain pan. Stainless steel cover provides attractive appearance and protects unit when not in use. When activated, cover serves as pan to collect waste water and return it into unit for drainage. Rather than connecting to building drainage system, unit has 1-1/2" OD drain connection on front of unit for waste water. Front drain provides for less costly installation while facilitating regular testing of unit
