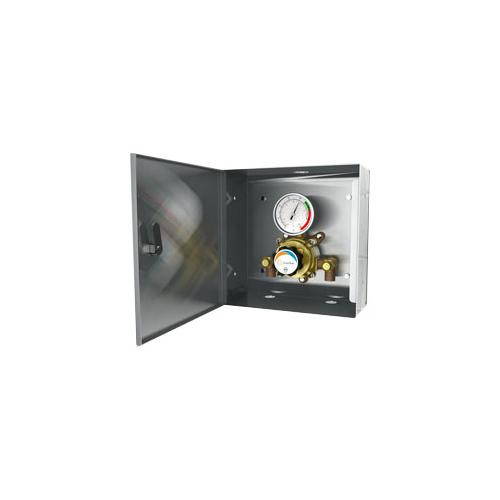

Guardian Equipment G3607LF Tempering Valve with Steel Cabinet

G3607LF, Tempering Valve, 6 Gallon Capacity, Recessed Stainless Steel Cabinet

• Application
  • Tempering valve to blend hot and cold water to deliver tepid water. Valve is installed in stainless steel cabinet designed for recess mounting in finished wall. Valve has flow capacity of 2 to 6 gallons per minute (GPM). Valve can be used with an eyewash, eye/face wash, dual purpose eyewash/drench hose or drench hose unit.
• Temperature Control
  • Valve has bimetallic thermostat that senses incoming water temperature and automatically blends water to 85°F (29°C). High temperature limit stop is set to 90°F (32°C). Valve has dial thermometer on outlet to monitor temperature of delivered water.
  • Note: Valve may need to be adjusted when installed based on incoming water temperature. Refer to “Installation Instructions".
• Fail Safe
  • In event of restriction or failure of hot water supply, internal bypass allows valve to deliver cold water to emergency unit. In bypass mode, valve will deliver 4 GPM of cold water at 30 PSI flow pressure. In event of loss of cold water supply, valve will close to prevent scalding and not deliver water.
• Supply Temperature
  • Minimum recommended hot water supply temperature is 120°F (49°C). Note: Extremely cold climates may require a hot water supply temperature greater than 120°F (49°C).
• Supply Pressure
  • 30 PSI minimum supply pressure is required for proper valve operation. Maximum supply pressure is 125 PSI. Maximum hot to cold water pressure differential is 5%.
• Mounting
  • Tempering valve is mounted in 16 gauge Type 304 stainless steel cabinet with flange featuring 3/8" return for recessed mounting in wall. Cabinet has hinged door with lock.
• Inlets
  • 1/2" nominal sweat female hot and cold water inlets. Each inlet has check valve and supply stop.
• Outlet
  • 1/2" NPT female outlet.
• Quality Assurance
  • Valve is completely assembled and water tested prior to shipment. Valve is certified to ASSE 1071. Valve is certified to meet low lead requirements of wetted surface area less than 0.25% lead by weight.

Important:

• Pursuant to ANSI Z358.1-2014, the water delivered by emergency equipment should be “tepid". Tepid is defined as moderately warm or lukewarm, and is generally considered to be between 60°F (15°C) and 90°F (32°C). However, in certain circumstances, a chemical reaction may be accelerated or otherwise affected by the water temperature. Please consult with a medical advisor to determine the optimum delivered water temperature prior to specifying, installing or using a tempering valve.
• Tempering valves will not deliver the appropriate water temperature if the system has not been sized correctly. Please refer to the flow capacities and supply pressure requirements listed above when designing the tempered water system and selecting tempering valves.
• Tempering valves, like all emergency eyewash and shower equipment, must be installed in accordance with the manufacturer’s instructions and maintained on a regular basis. Under ANSI Z358.1-2014, all emergency equipment should be activated weekly and inspected at least annually. Tempering valves should be treated the same and, in addition, must be regularly cleaned and cycled.
