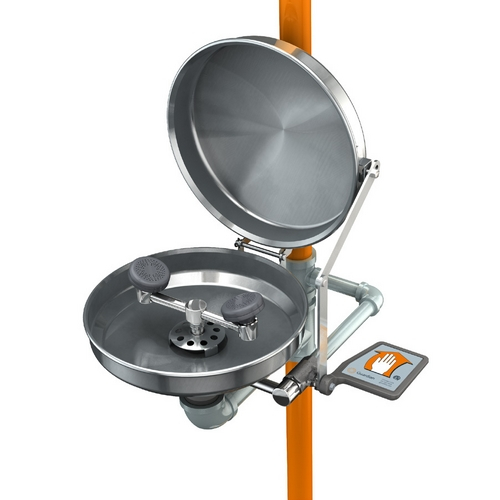

Guardian Equipment G1950BC Eye/ Face Wash Cover/Shower Safety Station

Guardian, G1950BC, Eye/ Face Wash with Stainless Steel Bowl and Cover/Shower Safety Station

Features:

• Shower Head: 10" diameter orange ABS plastic with 20 GPM flow control.
• Shower valve: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
• Spray head assembly: Two FS-Plus spray heads. Each head has an internal flow control and filter to remove impurities from water flow.
• Eye/ Face wash bowl: 11-1/2" diameter stainless steel with bowl cover.
• Eye/ Face wash valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
• Pipe and fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene pipe covers for high visibility and corrosion resistance.
• Supply: 1-1/4" NPT female top or side inlet.
• Waste: 1-1/4" NPT female outlet. Outlet can be positioned at either 9-1/4" or 19-5/8" above finished floor by reversing lower pipe nipples.
• Sign: Furnished with ANSI-compliant identification sign.
• Quality assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.

Application:

Combination Eye/ Face wash and shower safety station. Eye/ Face wash has stainless steel cover to protect bowl from dust, dirt and other contaminants. Cover is raised automatically when flag handle is activated. Cover closes when handle is returned to closed position. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
