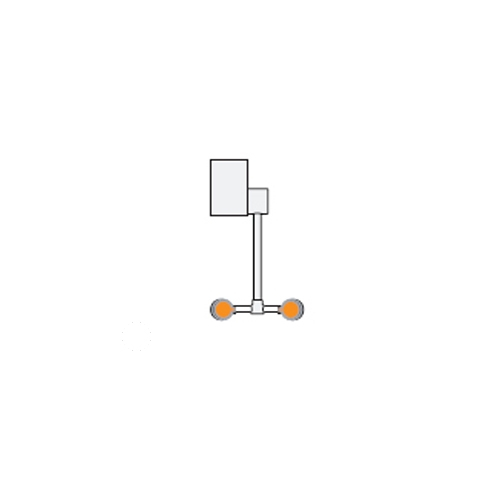

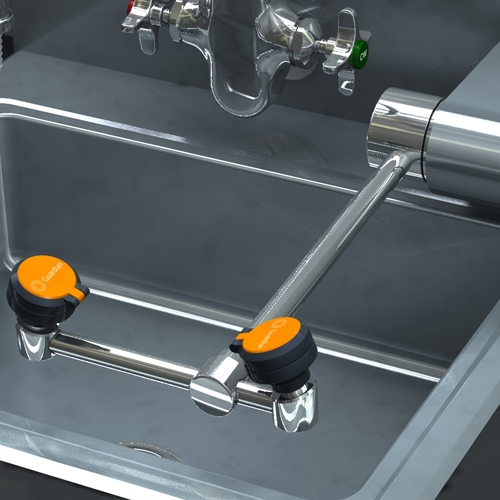

AutoFlow™ eyewash for mounting on wall. Spray heads swing down from storage to operational position, activating water flow. Available in a variety of spray head configurations to minimize obstructions at a sink. Note: If unit is not installed at a sink, floor drain should be provided underneath unit to prevent accumulation of water on floor.
Spray head assembly
Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
1/2" IPS plug-type valve with Teflon® coated O-ring seals. Swinging head assembly from storage to operational position opens orifice and activates water flow. Unit remains in operation until head assembly is returned to storage position.
Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line.
Valve is installed in Type 316 stainless steel housing. Mount housing on wall using anchors or other mounting hardware.
Polished chrome plated brass.
1/2" NPT female inlet.
ANSI-compliant identification sign.
Unit is completely assembled and water tested prior to shipment.
