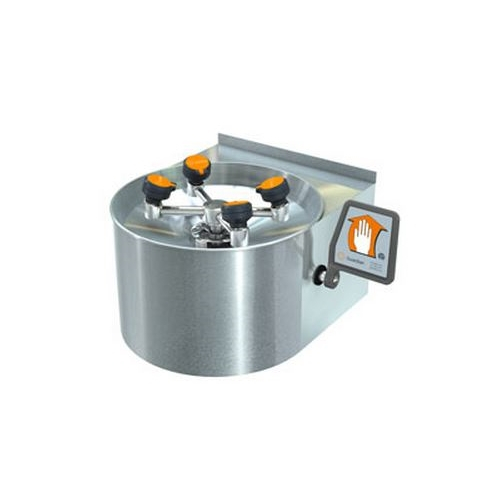

Guardian Equipment, G1721, WideArea Wall Mounted Eye/Face Wash with Stainless Steel Bowl & Skirt
WideArea Wall Mounted Eye/Face Wash with Stainless Steel Bowl & Skirt
Application: WideArea™ eye/face wash for wall mounting. Welded stainless steel bowl and wraparound skirt conceal valve, drain and piping. Ideal for laboratories and other areas where clean, uncluttered appearance is desired. Four GS-Plus™ spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.
Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.
Bowl: 11-1/2" stainless steel with stainless steel wraparound skirt.
Mounting: Bowl and skirt unit has welded stainless steel bracket for wall mounting.
Supply: 1/2" NPT female inlet.
Waste: 1 1/4" NPT female outlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
