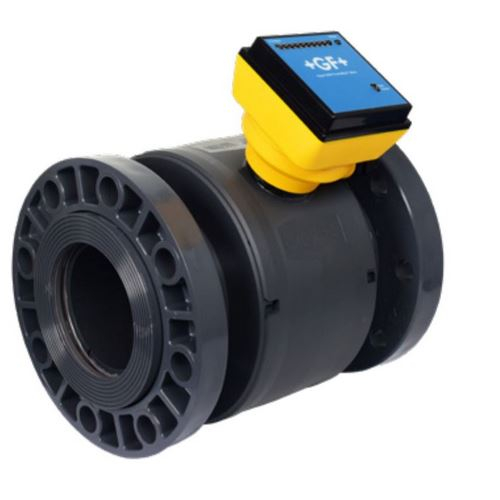

| General |
| Pipe Size Range | 4 in. |
| Flow Range Titanium | 33 ft/s |
| DN100 | 2.30 to 1151.22 GPM |
| Minimum Conductivity | 20 µS/cm |
| Power Cable Wire | 7.6 m (25 ft) |
| Wetted Materials |
| Flow Tube Body | PVC |
| Electrode | Titanium, grade 2 |
| O-rings | FKM |
| Performance |
| Accuracy | ± 1% of reading plus ± 0.01 m/s (0.033 ft/s), reference condition 50 µS/cm and water-based |
| Repeatability | ± 0.5% of reading at 25 °C (77 °F) |
| Low Flow Cutoff | 0.02 m/s (0.07 ft/s) |
| Electrical |
| DC Power (Functional Rating) | 24 VDC, max 24 W (12 to 32 VDC) |
| Reverse Polarity Protected | Up to 35 VDC |
| Over-Voltage Maximum Rating | 35 VDC |
| Current Output |
| Passive (low power) | 4 to 20 mA per ANSI-ISA 50.00.01 Class H |
| Active Output | 4 to 20 mA |
| Passive Loop Voltage | 12 to 32 VDC |
| Loop Accuracy | ±32 µA ( at 25 °C at 24 VDC) |
| Loop Resolution | 5 µA |
| Loop Span | 3.8 mA to 21 mA |
| Error Condition | None, 3.6 mA or 22 mA |
| Max. Cable | 300 m (1000 ft) |
| Max. Loop Resistance | 600 Ω at 24 VDC, Compatible with PLC, PC, or similar equipment |
| Frequency Output |
| Frequency | 5 to 24 VDC, 50 mA max. |
| Frequency Range | 0 to 1500 Hz |
| Max. Cable | 300 m (1000 ft) |
| Max. Pull-up Voltage | 30 VDC, 10k pull-up recommended |
| Compatible with Signet | 8900, 9900, 9950, and 0486 Profi bus Concentrator |
| Digital (S3L) | Output |
| Digital (S3L) | 4.5 to 5.5 VDC, Serial ASCII, TTL level 9600 bps Compatible with Signet 8900, 9900, 9950, and 0486 Profi bus Concentrator |
| Max. Cable Length | Application dependent |
| Environmental Requirements |
| Enclosure | NEMA 4X / IP65 |
| Relative Humidity | 0 to 95% non-condensing |
| Storage Temperature | -10 °C to 60 °C (14 °F to 140 °F) |
| Operating Temperature |
| Ambient | -10 °C to 60 °C 14 °F to 140 °F |
| Media | 0 °C to 60 °C 32 °F to 140 °F |
| UL Environmental Rating | UL 50, Type 6P Storage |
| Altitude | 4,000 m 13,123 ft |
| Maximum Operating Pressure | 10 bar at 23 °C (145 psi at 73 °F) |
| Pressure Rating | 2.27 bar at 60 °C (33 psi at 140 °F) |
| Weight | 8.3 kg / 18.3 lbs |
| Standards and Approvals | - CE, FCC, NSF (Titanium only, does not include flange gaskets)
- UL, CUL Recognized Component
- RoHS compliant, China RoHS
- Manufactured under ISO 9001 for Quality, ISO 14001 for Environmental Management and OHSAS 18001 for
- Occupational Health and Safety.
|
