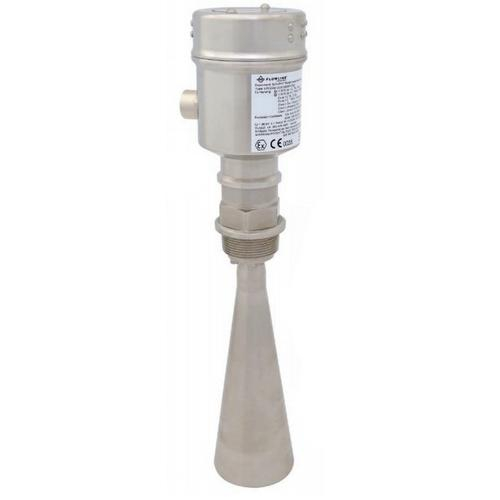

Flowline, LR36-5021-40-01, EchoPro Radar Solids Level Sensor, 1-1/2" NPT, 316L with Fob

The intrinsically safe 26 GHz. pulse radar transmitter provides continuous level measurement up to 49.2' (15m) with a 4-20 mA analog and HART digital signal output, and is configured via its integral push button display module or HART communicator. The non-contact solids level sensor is intended for dry solid media including aggregates, grains, pellets, powders and building materials.

Features:

Rugged 316L stainless steel antenna and process mount
Configuration via push button display or HART communicator
Gimbal flange for easy positioning with the angle of repose
LCD displays level in feet or meters with percent of span bar
Optional display mode indicates the echo signal return curve
Fail-safe diagnostics with selectable signal fail-safe outputs
Recognition, storage and rejection of false echo signal returns
IP67 stainless enclosure with polycarbonate display window

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Range	12" to 49.2' (30cm to 15m)
Frequency	26 GHz.
Accuracy	± 10mm
Dead band	12" (30cm)
Beam angle	8°
Configuration	Push button, HART 7
Memory	Non-volatile
Display type	LCD, dot matrix
Display units	Feet and meters
Display bar	Percent of span
Display graph	Echo signal curve
Supply voltage	21.6 to 26.4 VDC
Max. consumption	22.5 mA
Signal output	4-20 mA, two-wire, HART 7
Signal invert	4-20 mA, 20-4 mA
Signal fail-safe	3.9 mA, 20.5 mA, 22 mA
Process temp	F: -40° to 392° C: -40° to 200°
Temp. comp	Automatic
Storage temp.	F: -40° to 176° C: -40° to 80°
Pressure	-14.5 to 580 psi (-1 to 40 bar)
Enclosure rating	IP67
Encl. material	316L stainless steel w/silicone gasket
Encl. window mat.	Polycarbonate
Conduit entrance	1/2" NPT connector
Antenna material	316L
Process mount	1 1/2" NPT
Classification	Intrinsically safe
Approvals	ATEX IIG Ex ia II C T6...T3 Ga IEC Ex ia IIC T6...T3 Ga CSA Class I, Div 1, Groups A, B, C & D; Class II, Div 1, Groups E, F & G; (T6...T3); Class I Zone 0 AEx ia IIC (T6...T3) Ga & Zone 20 AEx ia IIIC (T76°C to T146°C) Da; Ex ia IIC (T6...T3) Ga & Ex ia IIIC (T76°C to T146°C) Ga
Certification	FCC
Compliance	CE, RoHS

Product Details

Range	12" to 49.2' (30cm to 15m)
Frequency	26 GHz.
Accuracy	± 10mm
Dead band	12" (30cm)
Beam angle	8°
Configuration	Push button, HART 7
Memory	Non-volatile
Display type	LCD, dot matrix
Display units	Feet and meters
Display bar	Percent of span
Display graph	Echo signal curve
Supply voltage	21.6 to 26.4 VDC
Max. consumption	22.5 mA
Signal output	4-20 mA, two-wire, HART 7
Signal invert	4-20 mA, 20-4 mA
Signal fail-safe	3.9 mA, 20.5 mA, 22 mA
Process temp	F: -40° to 392° C: -40° to 200°
Temp. comp	Automatic
Storage temp.	F: -40° to 176° C: -40° to 80°
Pressure	-14.5 to 580 psi (-1 to 40 bar)
Enclosure rating	IP67
Encl. material	316L stainless steel w/silicone gasket
Encl. window mat.	Polycarbonate
Conduit entrance	1/2" NPT connector
Antenna material	316L
Process mount	1 1/2" NPT
Classification	Intrinsically safe
Approvals	ATEX IIG Ex ia II C T6...T3 Ga IEC Ex ia IIC T6...T3 Ga CSA Class I, Div 1, Groups A, B, C & D; Class II, Div 1, Groups E, F & G; (T6...T3); Class I Zone 0 AEx ia IIC (T6...T3) Ga & Zone 20 AEx ia IIIC (T76°C to T146°C) Da; Ex ia IIC (T6...T3) Ga & Ex ia IIIC (T76°C to T146°C) Ga
Certification	FCC
Compliance	CE, RoHS

Note

Note: Please read description carefully. Do not base your order on the picture presented.
