Flowline LI55-1411 DataView Level Controller with 4 Relays

Flowline, LI55-1411, DataView Level Controller with 4 Relays & 4-20 mA Repeater, 85-265 VAC

The general purpose level controller displays engineering units with one 4-20 mA or 0-10 VDC continuous level sensor input and is offered in three configurations with 4 programmable relays, and an isolated 4-20 mA repeater. Each relay can be configured on a single set point (high level alarm or low level alarm) or latched on two set points for automatic fill or empty in simplex (one pump or valve) or duplex (two pumps) level control modes.

Includes:

• 4 programmable relays
• 4-20 mA repeater

Features:

• LED main display and secondary unit display with relay status
• Easy configuration via the push button display module

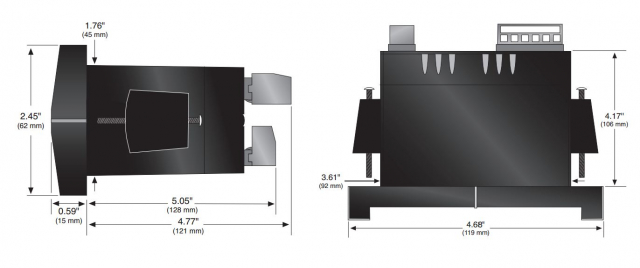

• DIN enclosure with NEMA 4X faceplate and shallow case
• Isolated power supply to sensor with 4-20 mA repeater output
• Non-volatile memory with security password protection
• 32-point linearization function for volumetric measurement
• Simple display makes configuration easy
• Capable of displaying units in gallons, liters, inches, feet, meters, and percent of liquid
• 4 relays for direct control of pumps, valves or alarms

Compatible Products:

• LU28 EchoSonic® II Ultrasonic Level Transmitter
• DL14 EchoPod ® Ultrasonic Level Transmitter
• LU83 EchoSpan® Ultrasonic Level Transmitter
• LU20 EchoTouch® Ultrasonic Level Transmitter
• LV55 FloaTek™ Float Level Transmitter
• LD32 DeltaSpan™ Pressure Level Transmitter
