Flowline LD31-S121 DeltaSpan Submersible Pressure Transmitter

Cable Jacket: Polyurethane, Sensor Range: 34' 15PSI
  • Brand Flowline
  • Part # LD31-S121
  • Model # DeltaSpan
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Cable Jacket:
Cable Jacket: Polyurethane
Sensor Range:
Sensor Range: 34' 15PSI

Flowline, LD31-S121, DeltaSpan 34' 15PSI Polyurethane Submersible Pressure Level Transmitter for Water & Oil

Features:

  • Corrosion resistant 316 SS transducer with polyurethane or ETFE cable.
  • Strong cable design with maintenance free breather tube and vent filter.
  • Automatic temperature compensation for accurate measurement.

Application:

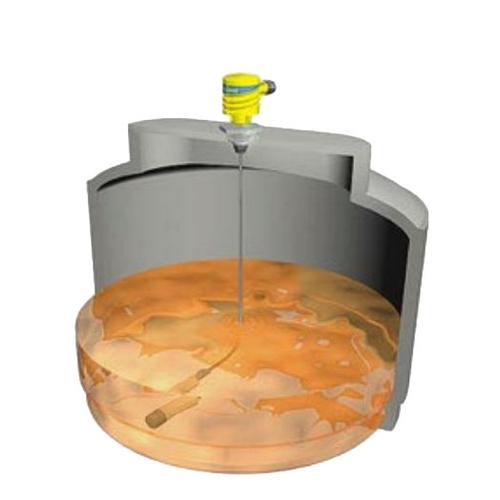

The general purpose LD31 submersible pressure level transmitter provides continuous level measurement up to 46' (14m) of water column with a 4-20 mA signal output. Select the LD31 liquid level sensor for relatively clean water, light weight oil or diluted chemical. Application examples include water wells and ponds.

Key Benefits:

  • Ideal for applications with heavy foam and vapors.
  • Connects directly to PLC/SCADA or display.
  • Great for higher temperatures and installation with small access.
  • Great for concrete sumps with limited access.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews

Range:

0 to 15 PSI (1.0 bar), 0 to 34' (0 to 10.4m) wc
Accuracy:± 0.25% of full scale
Configuration:None, fixed span
Supply Voltage:13 to 30 VDC
Loop Resist.:900 Ohms @ 30 VDC
Signal Output:4-20 mA, two-wire
Process Temp.:F: 0° to 150°, C: -18° to 66°
Temp. Comp.:F: 0° to 150°, C: -18° to 66°
Proof Pressure:2 x full span
Response Time:50ms
Weight:2.2 lb (1.0 kg)
Trans. Material:316 SS, 316L SS,Buna-N & PVC
Trans. Thread:1/2" NPT
Cable Type:2-conductor, shielded with vent tube
Cable Length:60' (18.3m)
Cable Material:Polyurethane
Classification:General purpose
Compliance:CE
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Range:

0 to 15 PSI (1.0 bar), 0 to 34' (0 to 10.4m) wc
Accuracy:± 0.25% of full scale
Configuration:None, fixed span
Supply Voltage:13 to 30 VDC
Loop Resist.:900 Ohms @ 30 VDC
Signal Output:4-20 mA, two-wire
Process Temp.:F: 0° to 150°, C: -18° to 66°
Temp. Comp.:F: 0° to 150°, C: -18° to 66°
Proof Pressure:2 x full span
Response Time:50ms
Weight:2.2 lb (1.0 kg)
Trans. Material:316 SS, 316L SS,Buna-N & PVC
Trans. Thread:1/2" NPT
Cable Type:2-conductor, shielded with vent tube
Cable Length:60' (18.3m)
Cable Material:Polyurethane
Classification:General purpose
Compliance:CE
Note

Note: Please read description carefully. Do not base your order on the picture presented.
