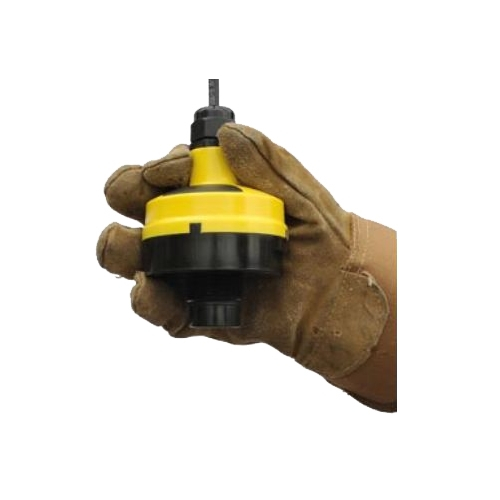

Flowline, DL24-10, EchoPod 1" Metric Ultrasonic Switch & Controller Level Transmitter, 3m Range
Features:
- Switch and control functions with continuous level measurement output up to 9.8' (3m).
- Configuration is fast and easy via WebCal software and USB adapter.
- Narrow 2" beam width and short 4" dead band optimized for day tanks.
- Four (4) programmable relays rated @ 1A / 60VA for switch, pump or valve control and fail-safety:
- 1 pump or valve with 3 alarms.
- 2 pumps (lead-lag) with 2 alarms.
- 2 pumps (duplexing) with 2 alarms.
- 4 independent switch point alarms.
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids.
- Automatic temperature compensation for accurate measurement.
Application:
The general purpose ultrasonic level transmitter provides continuous level measurement up to 9.8' (3m) with a 4-20 mA signal output, and is configured via our free WebCal software. The level sensor has 4 programmable relays with selectable hysteresis and fail-safe logic. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is widely selected for day tank, skid, IBC, sump and process tank level applications.
