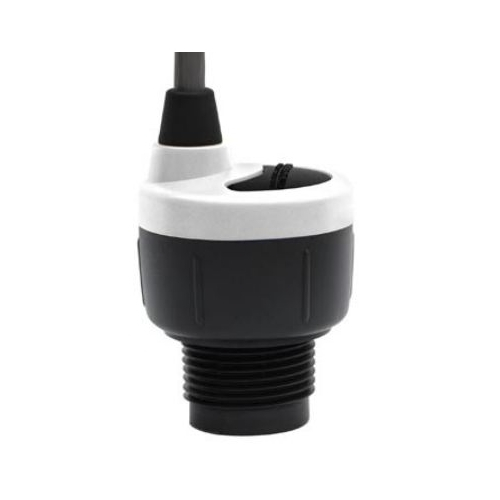

Flowline, DL10-11, EchoPod 1" Metric Ultrasonic Level Transmitter with Fob Bundle, 1.25m Range
Features:
- Continuous non-contact level measurement up to 49.2" (1.25m).
- 4-20 mA output for longer signal distances up to 1000' (300m).
- Configuration is fast and easy via WebCal software and USB adapter.
- Narrow 2" beam width and short 2" dead band optimized for small tanks.
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids.
- Automatic temperature compensation for accurate measurement.
Application:
The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2" (1.25m) with a 4-20 mA signal output, and is configured via our free WebCal software. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for small day tank, skid, IBC, sump and process tank level applications.
