Teledyne FLIR, ONE PRO LT USB-C, Pro-Grade Thermal Camera, 4800 Pixel Resolution, VividIR™ for Android, USB-C Connector

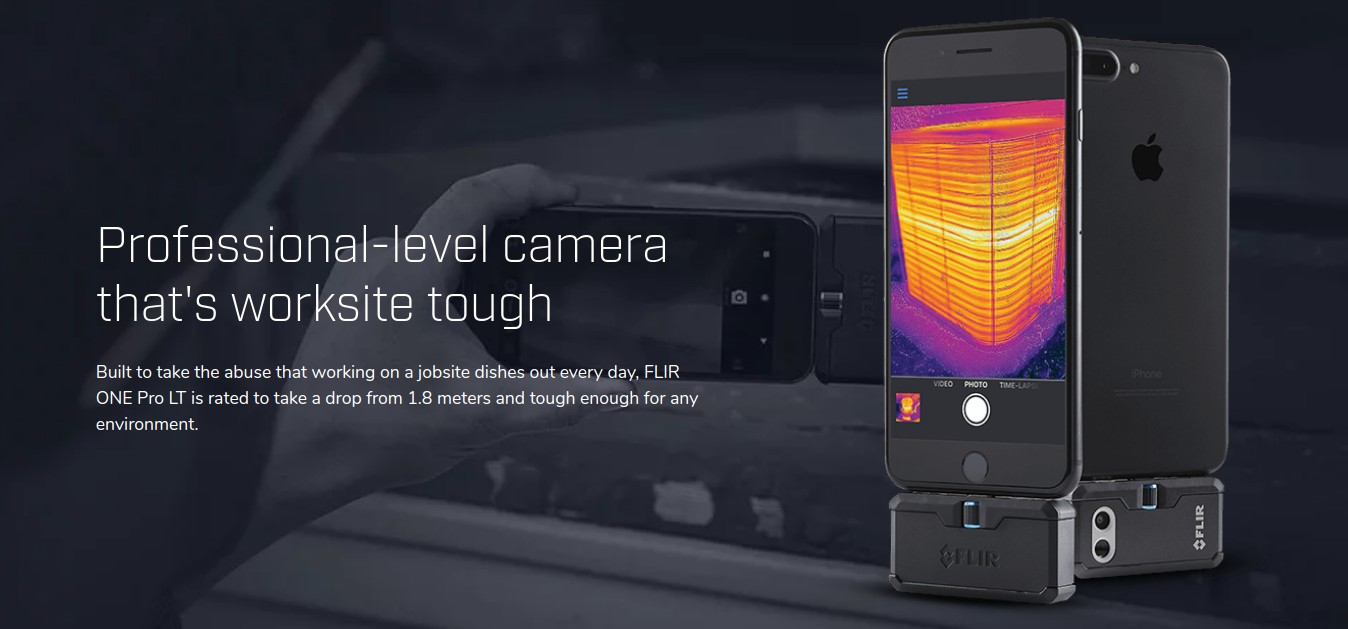

FLIR ONE Pro LT has the power to find hidden problems faster than ever. With the enhanced resolution of FLIR VividIR™ processing, added perspective of FLIR MSX®, and the convenience of the OneFit™ adjustable connector, FLIR ONE Pro LT works as hard as you do. Whether you're a professional or just focused on DIY projects, the FLIR ONE Pro LT has the powerful features you need at an affordable price.

The Professional's Thermal Smartphone Module

Vividir™ Image Processing

Unique image processing technology that enhances resolution and accuracy, to help you catch potential problems early and reliably diagnose problems.

Teledyne FLIR Onefit™ Connector

Adjustable connector extends by up to 4 mm, so you can secure your FLIR ONE Pro LT to your mobile device while its still in the protective case.

Hard-working App

Work-based features such as multiple spot meters, level/span controls, and reporting through the FLIR Tools Mobile App support more professional problem solving and functionality.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Overview
Non-Operating Temperature	-20°C — 60°C (-4°F — 140°F)
Scene Dynamic Range	-20°C — 120°C (-4°F — 248°F)
Spot Meter	Off / °C / °F. Resolution 0.1°C / 0.1°F
Thermal Sensitivity/NETD	100 mK
Dimensions (H x W x D)	68 x 34 x 14 mm (2.7 x 1.3 x 0.6 in)
Phone	Android (USB-C)
App
Adjustable MSX distance	0.3 m — Infinity
Battery charge monitor	0 — 100%
Capture modes	Video, Still image, Time lapse
File Formats	Still images – radiometric jpeg
Palette	Gray (white hot), Hottest, Coldest, Iron, Rainbow, Rainbow HC, Arctic, Lava and Wheel
Video and Still Image Display/Capture	Saved as 1440 x 1080
Compliance & Certifications
Certifications	MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
Connections & Communications
Charging	Female USB-C (5V/1A)
Video	Male USB-C
Environmental & Approvals
Emissivity Settings	Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
Mechanical shock	Drop from 1.8 m
Operating Temperature	0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)
Imaging & Optical
Focus	Fixed 15 cm — Infinity
Frame Rate	8.7 Hz
General Description	Thermal and Visual Cameras with MSX
HFOV/VFOV	55° ±1° / 43° ±1°
Shutter	Automatic/Manual
Thermal Resolution	80 x 60
Thermal Sensor	Pixel size 17 µm, 8 — 14 µm spectral range
Visual Resolution	1440 x 1080
Performance
Accuracy	±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
Power
Battery charge time	40 min
Battery life	Approximately 1 hr

Product Details

Overview
Non-Operating Temperature	-20°C — 60°C (-4°F — 140°F)
Scene Dynamic Range	-20°C — 120°C (-4°F — 248°F)
Spot Meter	Off / °C / °F. Resolution 0.1°C / 0.1°F
Thermal Sensitivity/NETD	100 mK
Dimensions (H x W x D)	68 x 34 x 14 mm (2.7 x 1.3 x 0.6 in)
Phone	Android (USB-C)
App
Adjustable MSX distance	0.3 m — Infinity
Battery charge monitor	0 — 100%
Capture modes	Video, Still image, Time lapse
File Formats	Still images – radiometric jpeg
Palette	Gray (white hot), Hottest, Coldest, Iron, Rainbow, Rainbow HC, Arctic, Lava and Wheel
Video and Still Image Display/Capture	Saved as 1440 x 1080
Compliance & Certifications
Certifications	MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
Connections & Communications
Charging	Female USB-C (5V/1A)
Video	Male USB-C
Environmental & Approvals
Emissivity Settings	Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
Mechanical shock	Drop from 1.8 m
Operating Temperature	0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)
Imaging & Optical
Focus	Fixed 15 cm — Infinity
Frame Rate	8.7 Hz
General Description	Thermal and Visual Cameras with MSX
HFOV/VFOV	55° ±1° / 43° ±1°
Shutter	Automatic/Manual
Thermal Resolution	80 x 60
Thermal Sensor	Pixel size 17 µm, 8 — 14 µm spectral range
Visual Resolution	1440 x 1080
Performance
Accuracy	±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
Power
Battery charge time	40 min
Battery life	Approximately 1 hr
