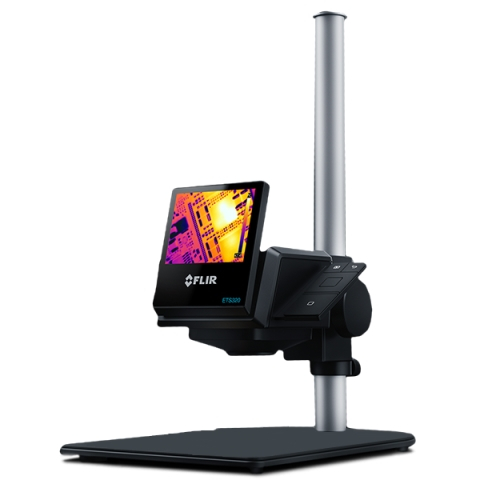

Teledyne FLIR ETS320 63950-1001 Thermal Imaging System

Teledyne FLIR, ETS320, 63950-1001 Thermal Imaging System for Electronics Testing

Features:

• 320 x 240 IR resolution (76,800 pixels)
• Vibrant 3” LCD display
• 45° field of view
• ±3% measurement accuracy
• Records standard radiometric JPEGs
• FLIR Tools+ software provided

Includes:

• Camera
• Mount
• Stand
• Power supply
• USB cable
• FLIR Tools+ software

Reduce Test Times

The FLIR ETS320 takes the guesswork out of thermal testing for fast discovery of hot spots and potential points of failure.

• Sensitive enough to detect temperature shifts smaller than 0.06°C
• Wide temperature range, from -20°C to 250°C, for quantifying heat generation and thermal dissipation
• Measures small components down to 170 µm per pixel spot size

Improve Product Design

The FLIR ETS320 promotes design improvements and shortens product development time by detecting design flaws that materialize as heat.

• 320 x 240 IR sensor offers 76,800 points of non-contact temperature measurement
• True 45° field of view for broad initial scans to identify potential problems
• Measurement accuracy of ±3°C promotes quality assurance and factory acceptance of PCBs

Designed for Laboratory Work

The ETS320 is designed for hands-free laboratory testing, with simplified features that allow users to focus on their work instead of on the camera controls.

• Pole mount included for fast and easy setup
• Crisp 3” LCD display provides immediate thermal feedback
• FLIR Tools+ software for instant analysis, including Time vs. Temperature measurement

Whether the goal is product testing or scientific research, heat can be an important indicator of how a system is functioning. The FLIR ETS320 is a non-contact thermal measurement system that pairs a high-sensitivity infrared camera with an integrated stand, for hands-free measurement of printed circuit boards and other small electronics. The FLIR ETS320 is an affordable solution for reducing test times and improving product design for electronic board and device evaluation. Whether the goal is R&D or product testing, heat can be an important indicator of how a system is functioning. The ETS320 helps engineers and test technicians collect accurate, reliable data in seconds and analyze it quickly.

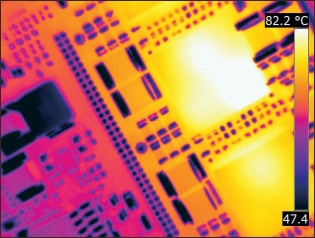

	Measure small components down to 170µm per pixel spot size
	Determine where to add or remove thermal management devices

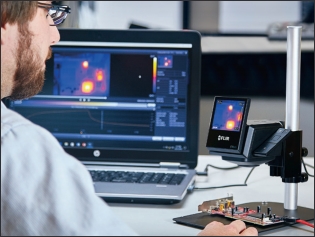

	Connect over USB a computer to analyze data in FLIR Tools+
