FT121N4200CAPOB Includes Only:
- Power Supply (see Power section)
- Short Installation Manual
- Standard Stand
- W-LAN antenna (RP-SMA female)
Features:
- Intel® Pentium® N4200 QuadCore CPU
- 4GB RAM memory, 128GB Industrial SSD
- Supports Windows 10 & Linux (32Bit, 64Bit)
- Anti-glare surface treatment (chemical etching)
- 10-Finger-Multi Touch Capacitive Touch Panel
- 1.1mm cover glass with 7H surface hardness
- Optically bonded Touch Panel to LCD Panel
- Patented IP65 front with silicon seal
- Integrated W-LAN
faytech's Capacitive PC series stands out among competition with its fanless silent operation, IP65 front panel design, high reliability and fine craftwork. It is the perfect choice for industrial and business application. It has flat edge to edge glass with IP65 water- and dust proof front panels and a sturdy aluminum case with stable VESA 100 fixation bolts.
The touch PC is powered by faytech's industrial Apollo Lake mainboard. It is driven by the powerful Intel® Pentium® N4200 QuadCore processor with up to 2.50 GHz clock frequency. This version is equipped with 4GByte RAM, 128G SSD and Intel's HD Graphic chipset, supporting FullHD, DirectX 11.1 and OpenGL 4.0.
These faytech PCs are the perfect choice for a wide variety of applications including POS systems, control panels in industrial fields, in kiosk systems, office/residence automation, digital signage and in areas like shopping malls, classrooms, hotels and many more.
Internal Connectors:
- 1x SO-DIMM, max. 8GB, DDR3L 1333/1600/1867 non-ECC, Single channel memory
- 3x RS232/RS485 COM connectors switchable in BIOS
- 2x LCD Backlight control/LCD panel voltage box
- 1x 5V/12V SATA power connector
- 1x 12V DC power connector (2-pin)
- 1x 4-pin SATA power connector
- 1x S/PDIF output pin header
- 1x 8-bit Digital I/O interface
- 1x Line-out / Mic-in header
- 1x Front Panel box header
- 1x Serial ATA 6Gb/s
- 1x MIPI CSI connector
- 1x LVDS box header
- 2x USB 3.0 box header

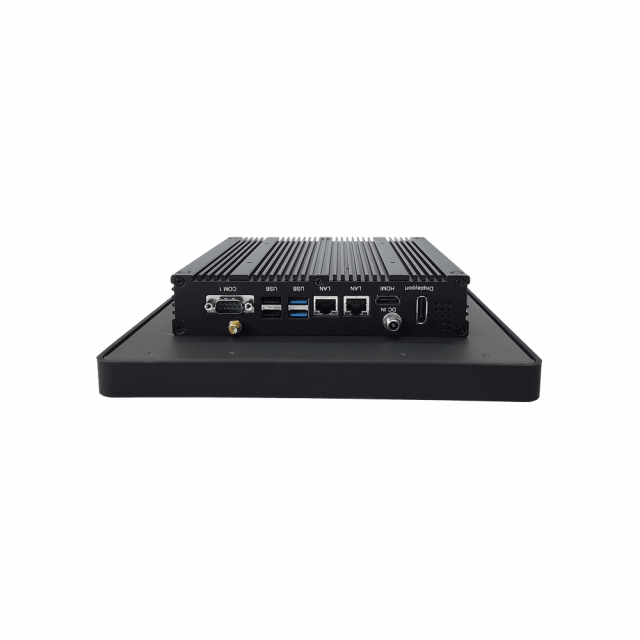

External Connectors:
- 1x 12V DC-In (screwable)
- 1x W-LAN antenna connector (RP-SMA male)
- 2x USB 2.0
- 2x USB 3.0
- 1x HDMI
- 1x DP
- 1x MIC-In & EAR-Out
- 1x 10-PIN DIO as RJ50
- 2x COM port Full-PIN - RS232/485; 5V/12V
- 2x COM port 3-PIN - RX, TX, GND; RS232/485; 5V/12V
- 2x 10/100/1000Mbit RJ45 Ports
- 1x 2.5" module slot, changeable SSD included
Expansion Slots:
- 1x mSATA full size (occupied by SSD)
- 1x M.2 E-Key Slot (occupied by Wifi card)
- 1x SATA connector
- 1x External PCIe x1 Straddle connector
