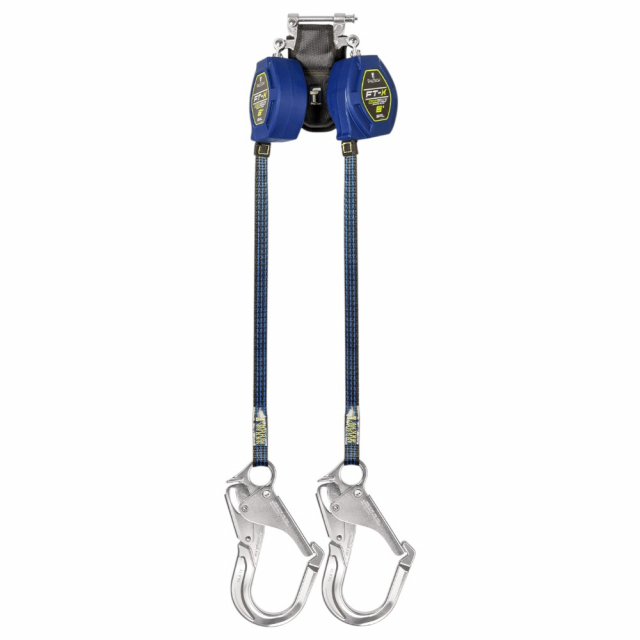

FallTech, 84106TP5, FT-X EdgeCore 6' Class 2 Leading Edge Personal SRL-P, Twin-Leg with Aluminum Rebar Hooks

Features:

EdgeCore™ lifeline is made from Kevlar® cables and a UV-resistant composite jacket, weighing 40% less than 3/16" galvanized cable used in most Class 2 SRL-P's
Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
Features comprehensive fall clearance charts and tables inside the energy absorber cover
Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
Complies with ANSI Z359.14-2021 Class 2 SRL-P.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Material Specifications
Lifeline	EdgeCore 5,000 lb min. static strength
Energy Absorber	Polyester tear-away
Anchorage Connector	Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Dorsal Connector	Aluminum alloy; 3,600 lb min.
Performance Specifications
Static Strength	3,600 lb min.
ANSI SRL Class/Type	Class 2 SRL-P
Avg. Arrest Force	1,350 lb max.
Max. Arrest Force	1,800 lb
Max. Arrest Distance	42"
ANSI User Capacity	130 to 310 lb max.
OSHA User Capacity	130 to 420 lb max.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Material Specifications
Lifeline	EdgeCore 5,000 lb min. static strength
Energy Absorber	Polyester tear-away
Anchorage Connector	Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Dorsal Connector	Aluminum alloy; 3,600 lb min.
Performance Specifications
Static Strength	3,600 lb min.
ANSI SRL Class/Type	Class 2 SRL-P
Avg. Arrest Force	1,350 lb max.
Max. Arrest Force	1,800 lb
Max. Arrest Distance	42"
ANSI User Capacity	130 to 310 lb max.
OSHA User Capacity	130 to 420 lb max.

Note: Please read description carefully. Do not base your order on the picture presented.
