FallTech 6036012 SteelGrip Temporary Cable HLL System with Stanchions for 4" to 12" I-Beams, 60'

6036012, SteelGrip Temporary Cable HLL System with Stanchions for 4" to 12" I-Beams, 60'

SteelGrip® Cable Horizontal Lifeline and Stanchion Systems provide temporary, portable and continuous anchoring for worksite conditions where typical anchorages along a walking surface are limited or nonexistent. SteelGrip HLLs can be configured as single or multi-span systems adapting to specific user’s anchoring needs.

Features

• Pre-configured in 60' multi-span systems
• Single-span systems include one Coil Energy Absorber and two Stanchions while Multi-span systems
• 42" Plated Steel I-Beam Stanchions fit beam flanges up to 2-1/4" thick
• Plated Steel I-Beam Clamps available with flange width ranges of 4" to 12" and include Steel Wing Nut adjusters

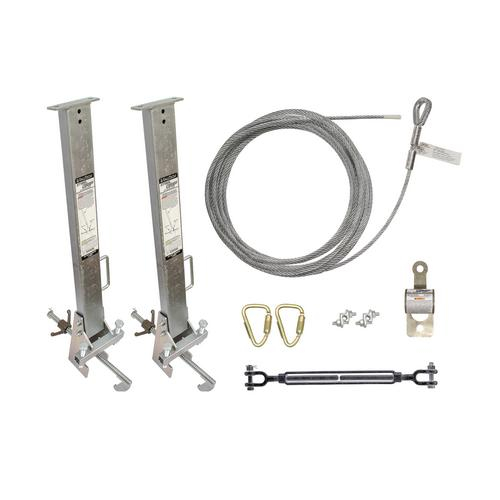

All SteelGrip® Cable HLL Systems include:

• SteelGrip® Stainless Steel Coil Energy Absorber (1)
• SteelGrip® I-Beam Stanchions (2)
• Intermediate Pass-through Bracket (for multi-span systems only)
• 21-3/4" Galvanized steel jaw and jaw Tensioning Turnbuckle with 12" adjustment
• 2 Alloy Steel Carabiners and Wire Rope Clips
• 3/8" Galvanized Steel Cable with thimble-eye termination
