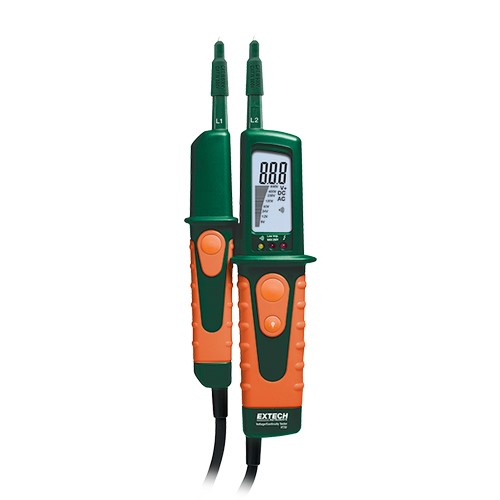

Extech VT30 LCD Multifunction Voltage Tester

  • Brand Extech
  • Part # VT30
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

VT30 Includes Only:

  • LCD Multifunction Voltage Tester
  • 2 AAA batteries
  • Protective cap
  • Pouch case

Features:

  • Large backlit LCD Display
  • AC voltage (0 to 480V) and DC voltage (0 to 690V)
  • Polarity detection with LEDs for positive and negative DC
  • Continuity Test with audible tone
  • Phase rotation test for motors
  • Two-handed operation for Low Impedance Testing
  • Built-in flashlight for testing in tight areas
  • Rubberized double-molded IP64 housing

The VT30 is a voltage, continuity and phase tester with built-in flashlight and backlit digital display with bar graph. The tester features a double molded IP64 housing, polarity detection with LEDs for positive and negative DC and a CAT III 600 Volt / CATIV 600 Volt safety rating.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Resources
Reviews
LCD Display1999 counts (3-1/2 digits) with bargraph and backlight
Resolution1 Volt
AC Voltage Range0 to 480V
ACV Frequency Range50/60Hz
DC Voltage Range0 to 690V
AccuracyACV ±(1.5%rdg + 5d); DCV ±(1.0%rdg + 3d)
Range SelectionAutomatic
Max Measuring Current≤1.0mA (400VAC); ≤1.5mA (690VDC)
Response TimeUpdates 2-3 times/sec
Input Impedance1MΩ (approx)
Continuity TestRange 0 to 200kΩ, guaranteed on < 50kΩ;
Overvoltage Protection480VAC/690VDC
Low Impedance Test12-250VAC/DC; impedance <6kΩ;
LCD Enable Input Voltage>4.5V AC/DC
Operation Time5s <250V AC/DC
Power Supply2 x"AAA" 1.5V alkaline batteries
Battery LifeApprox. 8 hours continuous use typical
Operating Temperature14 to 131° F (-10 to 55° C)
Storage Temperature-22 to 140° F (-30 to 60° C)
Operating Humidity10 to 85% RH (non-condensing)
Dimensions9.4 x 3 x 1.6"(240 x 78 x 40mm)
Weight9.2oz (260G)
Product Details
LCD Display1999 counts (3-1/2 digits) with bargraph and backlight
Resolution1 Volt
AC Voltage Range0 to 480V
ACV Frequency Range50/60Hz
DC Voltage Range0 to 690V
AccuracyACV ±(1.5%rdg + 5d); DCV ±(1.0%rdg + 3d)
Range SelectionAutomatic
Max Measuring Current≤1.0mA (400VAC); ≤1.5mA (690VDC)
Response TimeUpdates 2-3 times/sec
Input Impedance1MΩ (approx)
Continuity TestRange 0 to 200kΩ, guaranteed on < 50kΩ;
Overvoltage Protection480VAC/690VDC
Low Impedance Test12-250VAC/DC; impedance <6kΩ;
LCD Enable Input Voltage>4.5V AC/DC
Operation Time5s <250V AC/DC
Power Supply2 x"AAA" 1.5V alkaline batteries
Battery LifeApprox. 8 hours continuous use typical
Operating Temperature14 to 131° F (-10 to 55° C)
Storage Temperature-22 to 140° F (-30 to 60° C)
Operating Humidity10 to 85% RH (non-condensing)
Dimensions9.4 x 3 x 1.6"(240 x 78 x 40mm)
Weight9.2oz (260G)
