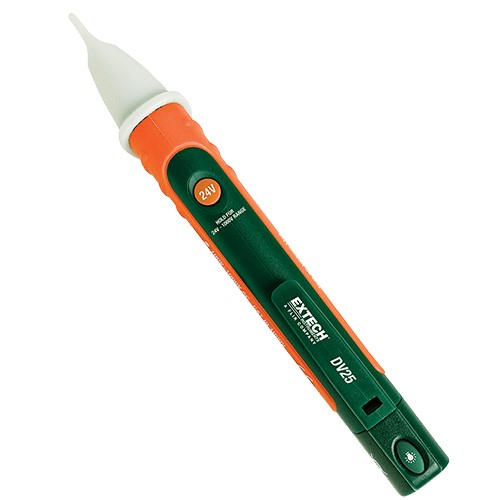

Extech DV25 Dual-Range AC Voltage Detector with Flashlight

Voltage Sensitivity: 100V to 1000V AC
  • Brand Extech
  • Part # DV25
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Voltage Sensitivity:
Voltage Sensitivity: 100V to 1000V AC

DV25 Includes Only:

  • Dual-Range AC Voltage Detector with Flashlight
  • Two AAA batteries

Features:

  • Non-contact detection of AC Voltage in 2 ranges:
    • 24 to 1000VAC
    • 100 to 1000VAC
  • For use on 50/60Hz circuits
  • Audible and Visual voltage indication
  • Built-in bright flashlight with On/Off button
  • Rugged double molded housing
  • Tip fits into outlets or against wire insulation testing

Model DV25 is a dual-range NCV detector that combines two models into one. Low range measures down to 24 Volt and the high range measures up to 1000 Volt. Audible and visual indication, rugged double molded housing, and a bright built-in LED flashlight.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Voltage Sensitivity100V to 1000V AC, 50/60Hz
24V to 1000V AC, 50/60Hz
Detection Distance<0.2"
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
AltitudeOperating below 2000 meters
Relative Humidity80% up to 31°C, decreasing to 50% at 50°C
Battery2 AAA batteries
Dimensions/Weight6.25x1" (159x25mm) / 1.5oz (42g)
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Voltage Sensitivity100V to 1000V AC, 50/60Hz
24V to 1000V AC, 50/60Hz
Detection Distance<0.2"
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
AltitudeOperating below 2000 meters
Relative Humidity80% up to 31°C, decreasing to 50% at 50°C
Battery2 AAA batteries
Dimensions/Weight6.25x1" (159x25mm) / 1.5oz (42g)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
