Sauermann 4500-S 4500 Series Gas Analyzer

Gas Measuring: O2, CO, NO/NOx, SO2
  • Brand Sauermann
  • Part # 4500-S
  • Model # 4500 Series
Availability
Discontinued
Share:

Replacement

This product is discontinued, no longer available. Replacement part numbers:

Options and Related Products

Gas Measuring:
Gas Measuring: O2, CO, NO/NOx, SO2

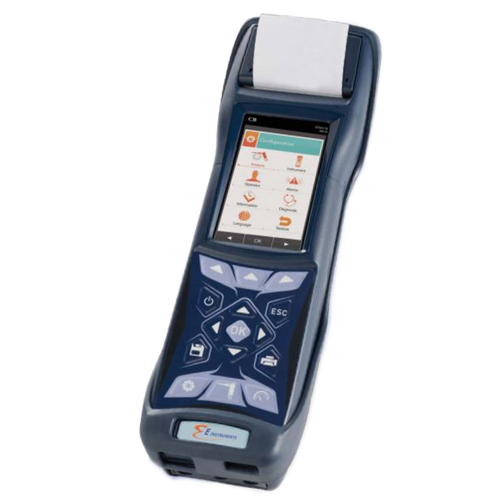

Sauermann, 4500-S, 4500 Series Combustion Gas Analyzer with O2, CO, NO/NOx, SO2 Sensors

Includes

  • Built-In Printer
  • Draft & Differential Pressure
  • Temperature Measurements
  • Calculation for CO2, Efficiency & Excess Air
  • Li-Ion Rechargeable Batteries & AC Charger
  • Gas Sampling Probe & Hoses
  • Water Trap with Filter Cartridge
  • Magnetic Rubber Holster
  • 2000 Test Internal Memory
  • PC Software & USB Cable
  • Bluetooth Connectivity
  • Operating Manual
  • Calibration Certificate
  • ABS Hard Plastic Carrying Case

Features

  • Up To FOUR Gas Sensors
  • Draft & Differential Pressurembustion Efficiency
  • Low NOx & Total NOx
  • CO Sensor w/ NOx Filter
  • 2 Channel Thermometer
  • 2000 Test Internal Memory
  • PC Software w/ Auto Saving
  • Zoom Feature
  • Pre-Calibrated Field Replaceable Sensors
  • BUILT-IN Printer
  • Magnetic Rubber Holster
  • Unbreakable Metal Connections
  • Full COLOR Graphic Display
  • Simple Menu Interface
  • Incoming Air Temperature Probe (Condensing Boilers)
  • Dilution Pump For CO Auto-Range Measurements Up To 50,000 ppm
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Parameter
Sensor
Range
Resolution
Accuracy
O2Electrochemical0 - 25 %0.1 %±0.2 % vol
COH2Compensated w/ Built-In NOx FilterElectrochemical0 - 8000 ppm1 ppm±8 ppm (0 - 200ppm)±5 % rdg (201 - 2000ppm)±10 % rdg (2001 - 8000ppm)
CO DILUTEDElectrochemical0.8% - 5.00%0.01%±10% rdg
CO2Calculated0 - 99.9%0.1%
NOElectrochemical0 - 5000 ppm1 ppm±5 ppm (0 - 100 ppm)±5% rdg (101 - 5000ppm)
Low NOElectrochemical0 - 100 ppm0.1 ppm±1.5 ppm (0.0 - 40.0ppm)±5% rdg (40.1 - 100.0ppm)
NOxCalculated0 - 5000 ppm1 ppm
SO2Electrochemical0 - 5000 ppm1 ppm±5 ppm (0 - 100ppm)±5% rdg (101 - 5000ppm)
TairPt100-10 to 212 °F-10 to 100 °C0.1 °F0.1 °C±1 °F±1 °C
TgasTc K-4 to 2280 °F-20 to 1250 °C0.1 °F0.1 °C±0.5 °C (-20 to 100 °C)±0.5% rdg (101 to 1250 °C)
Pressure/DraftSemiconductor±0 - 80 inH2O0.001 inH2O±1.0% rdg
Excess AirCalculated0 - 850%1 %
EfficiencyCalculated0 - 100%0.1 %
Probes & HosesLengthMax Temp.Hose
Standard12"1470°F/800°C10'/3m Dual Hose
Long30"1470°F/800°C10'/3m Dual Hose
Long & High Temp40"2190°F/1200°C10'/3m Dual Hose
Product Details
Parameter
Sensor
Range
Resolution
Accuracy
O2Electrochemical0 - 25 %0.1 %±0.2 % vol
COH2Compensated w/ Built-In NOx FilterElectrochemical0 - 8000 ppm1 ppm±8 ppm (0 - 200ppm)±5 % rdg (201 - 2000ppm)±10 % rdg (2001 - 8000ppm)
CO DILUTEDElectrochemical0.8% - 5.00%0.01%±10% rdg
CO2Calculated0 - 99.9%0.1%
NOElectrochemical0 - 5000 ppm1 ppm±5 ppm (0 - 100 ppm)±5% rdg (101 - 5000ppm)
Low NOElectrochemical0 - 100 ppm0.1 ppm±1.5 ppm (0.0 - 40.0ppm)±5% rdg (40.1 - 100.0ppm)
NOxCalculated0 - 5000 ppm1 ppm
SO2Electrochemical0 - 5000 ppm1 ppm±5 ppm (0 - 100ppm)±5% rdg (101 - 5000ppm)
TairPt100-10 to 212 °F-10 to 100 °C0.1 °F0.1 °C±1 °F±1 °C
TgasTc K-4 to 2280 °F-20 to 1250 °C0.1 °F0.1 °C±0.5 °C (-20 to 100 °C)±0.5% rdg (101 to 1250 °C)
Pressure/DraftSemiconductor±0 - 80 inH2O0.001 inH2O±1.0% rdg
Excess AirCalculated0 - 850%1 %
EfficiencyCalculated0 - 100%0.1 %
Probes & HosesLengthMax Temp.Hose
Standard12"1470°F/800°C10'/3m Dual Hose
Long30"1470°F/800°C10'/3m Dual Hose
Long & High Temp40"2190°F/1200°C10'/3m Dual Hose
Note

Note: Please read description carefully. Do not base your order on the picture presented.
