Features:
- Clear body allows for visual inspection of the fluid conditions and immediate problem detection
- Reduce cost with multi position mounting to accommodate direction of flow
- Rugged construction allows for high pressure and temperature rating for long operation life
- Injection molded, polysulfone body yield great repeatability

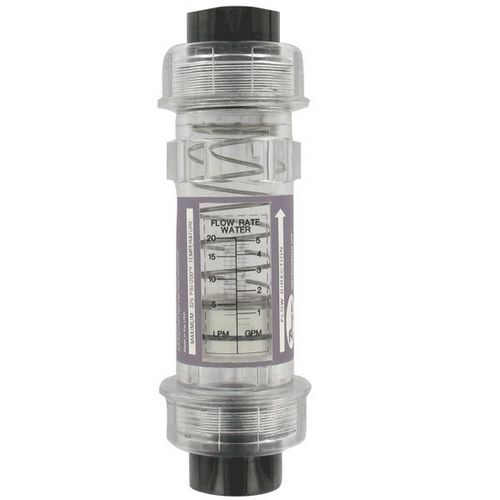

The HFPS Series Flowmeter are made of injection molded, polysulfone body. Series HFPS flowmeter have dual scales measuring in both GPM and LPM with +-5% full scale accuracy. Models are available with 1/2", 3/4" or 1" male or female NPT connections. Female 1/2", 3/4" and 1" BSPP connections are also available. Rugged construction allows meter to handle maximum pressures of 325 psig and 200 F. Unit can be mounted in any position, even applications with downward flow. HFPS Flowmeters are for indoor use only or areas without direct sunlight. Polysulfone are adversely affected by ultraviolet light.
For more information, please see Data Sheet
Meantime you may review Dwyer bestsellers or review the list of all available Dwyer products in the table below.
You may request a quote for a specific product or just contact us at any time
For more products see Product List
Part Number |
HFPS-1-1-BC |
HFPS-1-2-BC |
HFPS-1-3-BC |
HFPS-2-1-BC |
HFPS-2-2-BC |
HFPS-2-3-BC |
HFPS-2-4-BC |
HFPS-3-1-BC |
HFPS-3-2-BC |
HFPS-3-3-BC |
HFPS-3-4-BC |
HFPS-4-1-BC |
HFPS-4-2-BC |
HFPS-4-3-BC |
HFPS-4-4-BC |
HFPS-5-1-BC |
HFPS-5-2-BC |
HFPS-5-3-BC |
HFPS-5-4-BC |
HFPS-6-1-BC |
HFPS-6-2-BC |
HFPS-6-3-BC |
HFPS-6-4-BC |
HFPS-7-1-BC |
HFPS-7-2-BC |
HFPS-7-3-BC |
HFPS-7-4-BC |
HFPS-8-1-BC |
HFPS-8-2-BC |
HFPS-8-3-BC |
HFPS-8-4-BC |
HFPS-9-1-BC |
HFPS-9-2-BC |
HFPS-9-3-BC |
HFPS-9-4-BC |
