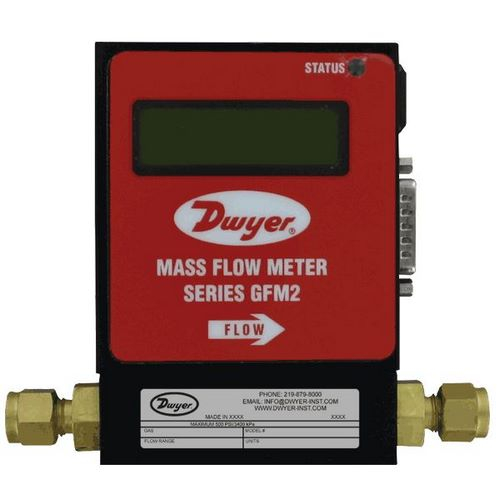

Dwyer Series GFM2 Gas Mass Flow Meter

  • Brand Dwyer
  • Part # Series GFM2
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Features:

  • Utilizes a straight tube sensor with a restrictor flow element to provide a high +-1% FS accuracy and +-0.25% FS repeatability
  • Gas flow can be displayed in 23 different engineering units on an optional 2x16 character LCD display with internal conversion factors for up to 32 gases
  • Digital RS-232 or RS-485 interfaces allow for easy communication and for multi-drop capability of up to 256 units (RS-485 only)
  • User-friendly interface allows for the programming of high and low gas flow alarms, along with two user-programmable electromechanical SPDT relays with latch options
  • Stores calibration information for up to 10 different gases, internal or user-specific K-factors
  • Automatic sensor zero offset adjustment (via digital interface or local push button)
  • NIST traceable certificate included
  • Self-diagnostic tests

The Series GFM2 Gas Mass Flow Meter is an ideal choice for the measurement of flow rates of a wide variety of gases. Unit can be calibrated for a variety of gases with user selectable 0 to 5 VDC or 4 to 20 mA and two relay outputs and programmable totalizer that indicates total gas quantity.

For more information, please see image28Data Sheet



Meantime you may review Dwyer bestsellers or review the list of all available Dwyer products in the table below.

You may request a quote for a specific product or just contact us at any time

For more products see image26Product List

Part Number
GFM2-AIR-010-A-B-A-N-A-2-10ML
GFM2-AIR-010-A-B-A-N-A-2-20ML
GFM2-AIR-010-A-B-A-N-A-2-50ML
GFM2-AIR-010-A-B-A-N-A-2-100ML
GFM2-AIR-010-A-B-A-N-A-2-200ML
GFM2-AIR-010-A-B-A-N-A-2-500ML
GFM2-AIR-010-A-B-A-N-A-2-1000ML
GFM2-AIR-010-A-B-A-N-A-2-2L
GFM2-AIR-010-A-B-A-N-A-5-10ML
GFM2-AIR-010-A-B-A-N-A-5-20ML
GFM2-AIR-010-A-B-A-N-A-5-50ML
GFM2-AIR-010-A-B-A-N-A-5-100ML
GFM2-AIR-010-A-B-A-N-A-5-200ML
GFM2-AIR-010-A-B-A-N-A-5-500ML
GFM2-AIR-010-A-B-A-N-A-5-1000ML
GFM2-AIR-010-A-B-A-N-A-5-2L
GFM2-AIR-010-A-B-A-N-A-9-10ML
GFM2-AIR-010-A-B-A-N-A-9-20ML
GFM2-AIR-010-A-B-A-N-A-9-50ML
GFM2-AIR-010-A-B-A-N-A-9-100ML
GFM2-AIR-010-A-B-A-N-A-9-200ML
GFM2-AIR-010-A-B-A-N-A-9-500ML
GFM2-AIR-010-A-B-A-N-A-9-1000ML
GFM2-AIR-010-A-B-A-N-A-9-2L
GFM2-AIR-010-A-B-A-N-B-2-10ML
GFM2-AIR-010-A-B-A-N-B-2-20ML
GFM2-AIR-010-A-B-A-N-B-2-50ML
GFM2-AIR-010-A-B-A-N-B-2-100ML
GFM2-AIR-010-A-B-A-N-B-2-200ML
GFM2-AIR-010-A-B-A-N-B-2-500ML
GFM2-AIR-010-A-B-A-N-B-2-1000ML
GFM2-AIR-010-A-B-A-N-B-2-2L
GFM2-AIR-010-A-B-A-N-B-5-10ML
GFM2-AIR-010-A-B-A-N-B-5-20ML
GFM2-AIR-010-A-B-A-N-B-5-50ML
GFM2-AIR-010-A-B-A-N-B-5-100ML
GFM2-AIR-010-A-B-A-N-B-5-200ML
GFM2-AIR-010-A-B-A-N-B-5-500ML
GFM2-AIR-010-A-B-A-N-B-5-1000ML
GFM2-AIR-010-A-B-A-N-B-5-2L
GFM2-AIR-010-A-B-A-N-B-9-10ML
GFM2-AIR-010-A-B-A-N-B-9-20ML
GFM2-AIR-010-A-B-A-N-B-9-50ML
GFM2-AIR-010-A-B-A-N-B-9-100ML
GFM2-AIR-010-A-B-A-N-B-9-200ML
GFM2-AIR-010-A-B-A-N-B-9-500ML
GFM2-AIR-010-A-B-A-N-B-9-1000ML
GFM2-AIR-010-A-B-A-N-B-9-2L
GFM2-AIR-010-A-B-A-L-A-2-10ML
GFM2-AIR-010-A-B-A-L-A-2-20ML
GFM2-AIR-010-A-B-A-L-A-2-50ML
GFM2-AIR-010-A-B-A-L-A-2-100ML
GFM2-AIR-010-A-B-A-L-A-2-200ML
GFM2-AIR-010-A-B-A-L-A-2-500ML
GFM2-AIR-010-A-B-A-L-A-2-1000ML
GFM2-AIR-010-A-B-A-L-A-2-2L
GFM2-AIR-010-A-B-A-L-A-5-10ML
GFM2-AIR-010-A-B-A-L-A-5-20ML
GFM2-AIR-010-A-B-A-L-A-5-50ML
GFM2-AIR-010-A-B-A-L-A-5-100ML
GFM2-AIR-010-A-B-A-L-A-5-200ML
GFM2-AIR-010-A-B-A-L-A-5-500ML
GFM2-AIR-010-A-B-A-L-A-5-1000ML
GFM2-AIR-010-A-B-A-L-A-5-2L
GFM2-AIR-010-A-B-A-L-A-9-10ML
GFM2-AIR-010-A-B-A-L-A-9-20ML
GFM2-AIR-010-A-B-A-L-A-9-50ML
GFM2-AIR-010-A-B-A-L-A-9-100ML
GFM2-AIR-010-A-B-A-L-A-9-200ML
GFM2-AIR-010-A-B-A-L-A-9-500ML
GFM2-AIR-010-A-B-A-L-A-9-1000ML
GFM2-AIR-010-A-B-A-L-A-9-2L
GFM2-AIR-010-A-B-A-L-B-2-10ML
GFM2-AIR-010-A-B-A-L-B-2-20ML
GFM2-AIR-010-A-B-A-L-B-2-50ML
GFM2-AIR-010-A-B-A-L-B-2-100ML
GFM2-AIR-010-A-B-A-L-B-2-200ML
GFM2-AIR-010-A-B-A-L-B-2-500ML
GFM2-AIR-010-A-B-A-L-B-2-1000ML
GFM2-AIR-010-A-B-A-L-B-2-2L
GFM2-AIR-010-A-B-A-L-B-5-10ML
GFM2-AIR-010-A-B-A-L-B-5-20ML
GFM2-AIR-010-A-B-A-L-B-5-50ML
GFM2-AIR-010-A-B-A-L-B-5-100ML
GFM2-AIR-010-A-B-A-L-B-5-200ML
GFM2-AIR-010-A-B-A-L-B-5-500ML
GFM2-AIR-010-A-B-A-L-B-5-1000ML
GFM2-AIR-010-A-B-A-L-B-5-2L
GFM2-AIR-010-A-B-A-L-B-9-10ML
GFM2-AIR-010-A-B-A-L-B-9-20ML
GFM2-AIR-010-A-B-A-L-B-9-50ML
GFM2-AIR-010-A-B-A-L-B-9-100ML
GFM2-AIR-010-A-B-A-L-B-9-200ML
GFM2-AIR-010-A-B-A-L-B-9-500ML
GFM2-AIR-010-A-B-A-L-B-9-1000ML
GFM2-AIR-010-A-B-A-L-B-9-2L
GFM2-AIR-010-A-B-B-N-A-2-10ML
GFM2-AIR-010-A-B-B-N-A-2-20ML
GFM2-AIR-010-A-B-B-N-A-2-50ML
GFM2-AIR-010-A-B-B-N-A-2-100ML
GFM2-AIR-010-A-B-B-N-A-2-200ML
GFM2-AIR-010-A-B-B-N-A-2-500ML
GFM2-AIR-010-A-B-B-N-A-2-1000ML
GFM2-AIR-010-A-B-B-N-A-2-2L
GFM2-AIR-010-A-B-B-N-A-5-10ML
GFM2-AIR-010-A-B-B-N-A-5-20ML
GFM2-AIR-010-A-B-B-N-A-5-50ML
GFM2-AIR-010-A-B-B-N-A-5-100ML
GFM2-AIR-010-A-B-B-N-A-5-200ML
GFM2-AIR-010-A-B-B-N-A-5-500ML
GFM2-AIR-010-A-B-B-N-A-5-1000ML
GFM2-AIR-010-A-B-B-N-A-5-2L
GFM2-AIR-010-A-B-B-N-A-9-10ML
GFM2-AIR-010-A-B-B-N-A-9-20ML
GFM2-AIR-010-A-B-B-N-A-9-50ML
GFM2-AIR-010-A-B-B-N-A-9-100ML
GFM2-AIR-010-A-B-B-N-A-9-200ML
GFM2-AIR-010-A-B-B-N-A-9-500ML
GFM2-AIR-010-A-B-B-N-A-9-1000ML
GFM2-AIR-010-A-B-B-N-A-9-2L
GFM2-AIR-010-A-B-B-N-B-2-10ML
GFM2-AIR-010-A-B-B-N-B-2-20ML
GFM2-AIR-010-A-B-B-N-B-2-50ML
GFM2-AIR-010-A-B-B-N-B-2-100ML
GFM2-AIR-010-A-B-B-N-B-2-200ML
GFM2-AIR-010-A-B-B-N-B-2-500ML
GFM2-AIR-010-A-B-B-N-B-2-1000ML
GFM2-AIR-010-A-B-B-N-B-2-2L
GFM2-AIR-010-A-B-B-N-B-5-10ML
GFM2-AIR-010-A-B-B-N-B-5-20ML
GFM2-AIR-010-A-B-B-N-B-5-50ML
GFM2-AIR-010-A-B-B-N-B-5-100ML
GFM2-AIR-010-A-B-B-N-B-5-200ML
GFM2-AIR-010-A-B-B-N-B-5-500ML
GFM2-AIR-010-A-B-B-N-B-5-1000ML
GFM2-AIR-010-A-B-B-N-B-5-2L
GFM2-AIR-010-A-B-B-N-B-9-10ML
GFM2-AIR-010-A-B-B-N-B-9-20ML
GFM2-AIR-010-A-B-B-N-B-9-50ML
GFM2-AIR-010-A-B-B-N-B-9-100ML
GFM2-AIR-010-A-B-B-N-B-9-200ML
GFM2-AIR-010-A-B-B-N-B-9-500ML
GFM2-AIR-010-A-B-B-N-B-9-1000ML
GFM2-AIR-010-A-B-B-N-B-9-2L
GFM2-AIR-010-A-B-B-L-A-2-10ML
GFM2-AIR-010-A-B-B-L-A-2-20ML
GFM2-AIR-010-A-B-B-L-A-2-50ML
GFM2-AIR-010-A-B-B-L-A-2-100ML
GFM2-AIR-010-A-B-B-L-A-2-200ML
GFM2-AIR-010-A-B-B-L-A-2-500ML
GFM2-AIR-010-A-B-B-L-A-2-1000ML
GFM2-AIR-010-A-B-B-L-A-2-2L
GFM2-AIR-010-A-B-B-L-A-5-10ML
GFM2-AIR-010-A-B-B-L-A-5-20ML
GFM2-AIR-010-A-B-B-L-A-5-50ML
GFM2-AIR-010-A-B-B-L-A-5-100ML
GFM2-AIR-010-A-B-B-L-A-5-200ML
GFM2-AIR-010-A-B-B-L-A-5-500ML
GFM2-AIR-010-A-B-B-L-A-5-1000ML
GFM2-AIR-010-A-B-B-L-A-5-2L
GFM2-AIR-010-A-B-B-L-A-9-10ML
GFM2-AIR-010-A-B-B-L-A-9-20ML
GFM2-AIR-010-A-B-B-L-A-9-50ML
GFM2-AIR-010-A-B-B-L-A-9-100ML
GFM2-AIR-010-A-B-B-L-A-9-200ML
GFM2-AIR-010-A-B-B-L-A-9-500ML
GFM2-AIR-010-A-B-B-L-A-9-1000ML
GFM2-AIR-010-A-B-B-L-A-9-2L
GFM2-AIR-010-A-B-B-L-B-2-10ML
GFM2-AIR-010-A-B-B-L-B-2-20ML
GFM2-AIR-010-A-B-B-L-B-2-50ML
GFM2-AIR-010-A-B-B-L-B-2-100ML
GFM2-AIR-010-A-B-B-L-B-2-200ML
GFM2-AIR-010-A-B-B-L-B-2-500ML
GFM2-AIR-010-A-B-B-L-B-2-1000ML
GFM2-AIR-010-A-B-B-L-B-2-2L
GFM2-AIR-010-A-B-B-L-B-5-10ML
GFM2-AIR-010-A-B-B-L-B-5-20ML
GFM2-AIR-010-A-B-B-L-B-5-50ML
GFM2-AIR-010-A-B-B-L-B-5-100ML
GFM2-AIR-010-A-B-B-L-B-5-200ML
GFM2-AIR-010-A-B-B-L-B-5-500ML
GFM2-AIR-010-A-B-B-L-B-5-1000ML
GFM2-AIR-010-A-B-B-L-B-5-2L
GFM2-AIR-010-A-B-B-L-B-9-10ML
GFM2-AIR-010-A-B-B-L-B-9-20ML
GFM2-AIR-010-A-B-B-L-B-9-50ML
GFM2-AIR-010-A-B-B-L-B-9-100ML
GFM2-AIR-010-A-B-B-L-B-9-200ML
GFM2-AIR-010-A-B-B-L-B-9-500ML
GFM2-AIR-010-A-B-B-L-B-9-1000ML
GFM2-AIR-010-A-B-B-L-B-9-2L
GFM2-AIR-010-A-B-D-N-A-2-10ML
GFM2-AIR-010-A-B-D-N-A-2-20ML
GFM2-AIR-010-A-B-D-N-A-2-50ML
GFM2-AIR-010-A-B-D-N-A-2-100ML
GFM2-AIR-010-A-B-D-N-A-2-200ML
GFM2-AIR-010-A-B-D-N-A-2-500ML
GFM2-AIR-010-A-B-D-N-A-2-1000ML
GFM2-AIR-010-A-B-D-N-A-2-2L
