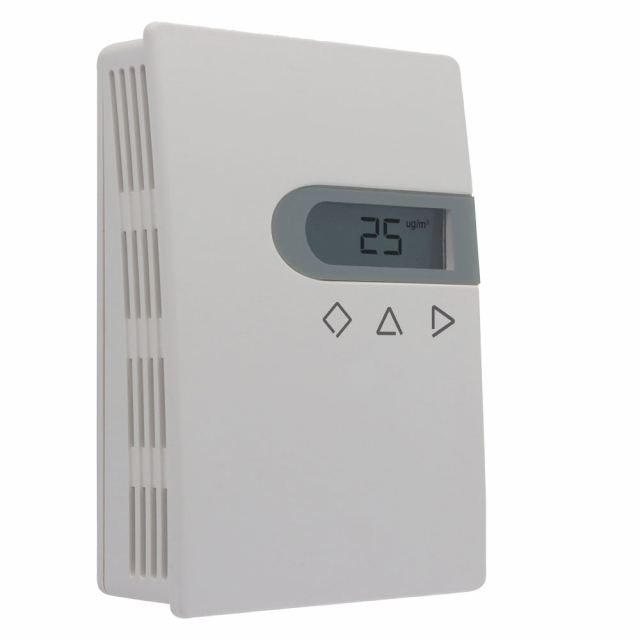

Dwyer PMI-2.5WC-N-B Particulate Matter Transmitter PM 2.5 Wall Mount

Version: Wall Mount, without Relay, with Display and Buttons
  • Brand Dwyer
  • Part # PMI-2.5WC-N-B
  • Model # Series PMI
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Version:
Version: Wall Mount, without Relay, with Display and Buttons

Dwyer, PMI-2.5WC-N-B, Particulate Matter Transmitter, PM 2.5, Wall Mount, Modbus, 4-20 MA, 0-10 V, LCD with Buttons

Features:

  • Maintains healthy air supply with long term stability and accuracy
  • Low maintenance with 10 years of service life in auto mode
  • Minimal downtime with overvoltage protection
  • Easy setup with optional integral display and buttons
  • Saves time using removable terminal block on duct mount model
  • Single unit controller with alarm, control modes, and optional relay

Applications:

  • Educational institutions
  • Healthcare facilities
  • Corporate offices
  • Hotels/restaurants
  • Air purifiers

The Series PMI Particulate Matter Transmitter is designed to measure indoor air quality by detecting particulate matter in an office environment or HVAC duct. Using laser scattering technology, the Series PMI can measure particles as small as 0.3 µm, making it an essential component of any indoor air quality monitoring system. The optional relay combined with the settable alarm and control parameters allow the Series PMI to be a stand-alone controller.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Particulate Size2.5 µm Particulate
MountingWall Mount
OutputCommunicating and analog (Modbus® RTU and 4-20 mA and 0-10 VDC)
Optionswithout relay
Display/Buttonwith display and buttons
Sensor:Laser scattering.
Range:PMI-2.5: 0-500 µg/m3, particle size 0.3-2.5 µm; PMI-10: 0-600 µg/m3, particle size 0.3-10 µm.
Resolution:1 µg/m3.
Response Time:<10 s, continuous service mode
Temperature Limits:Operating: 32 to 122°F (0 to 50°C); Storage: -22 to 158°F (-30 to 70°C).
Humidity Limits:0-95% RH (non-condensing).
Power Requirements:16-28 VAC/6-35 VDC.
Load Resistance:Current output: ≤500 Ω; Voltage output: ≥2 kΩ.
Service Life:MTBF more than 3 years in continuous service mode, service life up to 8-10 years in auto (intermittent) service mode.
Housing Materials:Wall mount: Polycarbonate (UL 94 V-0);
Enclosure Rating:Wall mount: IP30;
Weight:Wall mount: 7.05 oz (200 g);
Compliance:CE, UKCA.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Particulate Size2.5 µm Particulate
MountingWall Mount
OutputCommunicating and analog (Modbus® RTU and 4-20 mA and 0-10 VDC)
Optionswithout relay
Display/Buttonwith display and buttons
Sensor:Laser scattering.
Range:PMI-2.5: 0-500 µg/m3, particle size 0.3-2.5 µm; PMI-10: 0-600 µg/m3, particle size 0.3-10 µm.
Resolution:1 µg/m3.
Response Time:<10 s, continuous service mode
Temperature Limits:Operating: 32 to 122°F (0 to 50°C); Storage: -22 to 158°F (-30 to 70°C).
Humidity Limits:0-95% RH (non-condensing).
Power Requirements:16-28 VAC/6-35 VDC.
Load Resistance:Current output: ≤500 Ω; Voltage output: ≥2 kΩ.
Service Life:MTBF more than 3 years in continuous service mode, service life up to 8-10 years in auto (intermittent) service mode.
Housing Materials:Wall mount: Polycarbonate (UL 94 V-0);
Enclosure Rating:Wall mount: IP30;
Weight:Wall mount: 7.05 oz (200 g);
Compliance:CE, UKCA.
Note

Note: Please read description carefully. Do not base your order on the picture presented.
