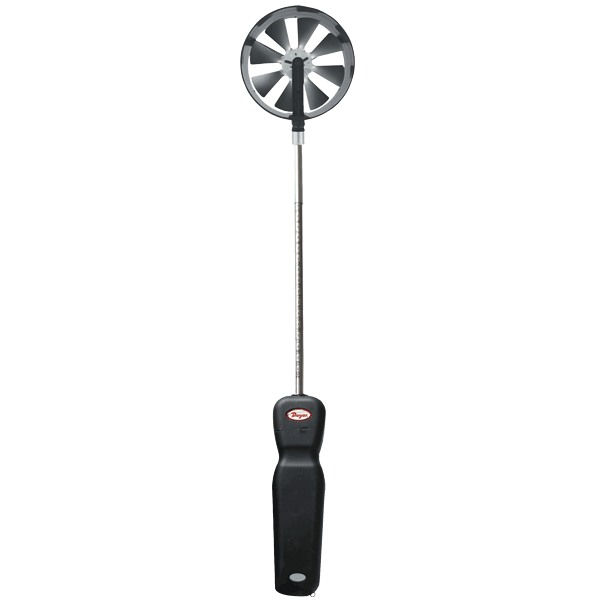

Dwyer VP2 100 mm Vane Thermo-Anemometer Probe

Options: Wireless
  • Brand Dwyer
  • Part # VP2
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Options:
Options: Wireless

Model VP2 100 mm Vane Thermo-Anemometer Probe, 100 mm, Wireless

Dwyer VP2 vane is a device with quick response (1s) that is used for taking measurements. It enables you to operate it wirelessly on maximum distance of fifteen meters (50 in).

It is intended to measure variables showing particular air characteristics, including:

  • humidity;
  • velocity (up to 50 fpm);
  • flow (999,999 in);
  • temperature (-20 to 212°F – if combined with Model UHH).

The vane is provided with a convenient wrist strap that facilitates handling. The VP2 has certain agency approvals – RoHS, CE (except while being charged) – and is compliant to FCC.

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
ServiceDry, clean air
Temperature Limits:Process: -20 to 212°F (-29 to 100°C); Ambient: 5 to 125°F (-15 to 51°C)
RangeAir Velocity: 0 to 6000 FPM (0 to 30 m/s); Volumetric Air: 999,999 in selected flow units; Temperature: -20 to 212°F (-29 to 100°C)
AccuracyAir Velocity: ±3% FS within temperature range of 40 to 90°F (4 to 32°C); Temperature: ±0.5°F (±0.28°C)
Response Time1 s
Probe Length8" (203 mm) insertion
Battery Charging Limits32 to 113°F (0 to 45°C). (Wireless Only)
Power Requirements3.7 V YT562447 Lithium ion battery, installed functional, user replaceable. (NoteIntended to be operated with power cables less than 3 m in length). (Wireless Only)
Maximum Wireless Distance50' (15 m). (Wireless Only)
Handle EnclosureThermoplastic elastomer over polycarbonate
Supplied WithWrist strap
Weight13.6 oz (385 g)
Agency ApprovalsCE (not while charging), RoHS, FCC compliant
Product Details
ServiceDry, clean air
Temperature Limits:Process: -20 to 212°F (-29 to 100°C); Ambient: 5 to 125°F (-15 to 51°C)
RangeAir Velocity: 0 to 6000 FPM (0 to 30 m/s); Volumetric Air: 999,999 in selected flow units; Temperature: -20 to 212°F (-29 to 100°C)
AccuracyAir Velocity: ±3% FS within temperature range of 40 to 90°F (4 to 32°C); Temperature: ±0.5°F (±0.28°C)
Response Time1 s
Probe Length8" (203 mm) insertion
Battery Charging Limits32 to 113°F (0 to 45°C). (Wireless Only)
Power Requirements3.7 V YT562447 Lithium ion battery, installed functional, user replaceable. (NoteIntended to be operated with power cables less than 3 m in length). (Wireless Only)
Maximum Wireless Distance50' (15 m). (Wireless Only)
Handle EnclosureThermoplastic elastomer over polycarbonate
Supplied WithWrist strap
Weight13.6 oz (385 g)
Agency ApprovalsCE (not while charging), RoHS, FCC compliant
