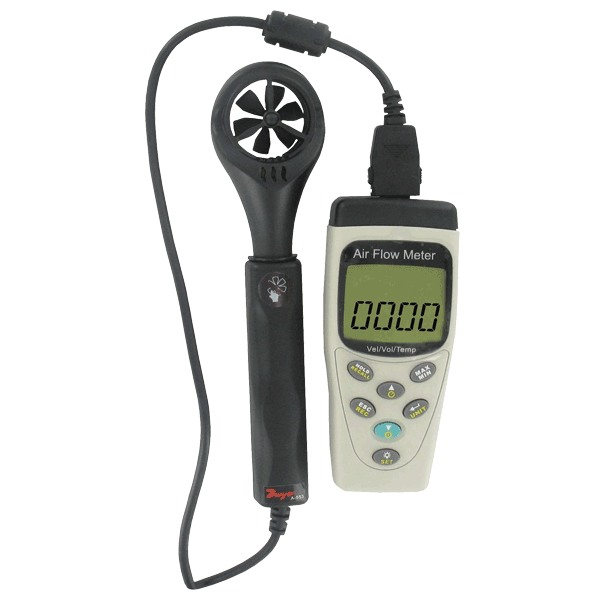

Dwyer, MVA-03, Series MVA Mini-Vane Thermo-Anemometer

Capable of Measuring Air Volume, Air Velocity, Temperature, Humidity and Barometric Pressure

The Series MVA Mini-Vane Thermo-Anemometer has the ability, depending on the model, to measure air velocity, volume flow, temperature, relative humidity, and barometric pressure. With its 1.18" diameter (30 mm) vane, the Series MVA is ideal for spot measurements at air outlets. The MVA- 02 is capable of detecting air flows up to 4921 ft/min (25 m/s) and temperatures up to 140°F (60°C). The MVA-03 additionally detects humidity from 0 to 100% with high accuracy. The Series MVA anemometers include a wide variety of user selectable units. These units feature a 4-digit LCD display, data hold, ability to record maximum and minimum, storage up to 99 air velocity records, and an auto-shutoff to prolong life. The Series MVA also has a detachable probe for convenient replacing, if necessary. The unit includes a 6 blade mini-vane probe, nylon case, and a battery.

Approvals

CE Approval

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Ranges
Air Velocity	79 to 4921 fpm, 0.4 to 25 m/s; 1.5 to 90 km/hr; 0.9 to 55 mph; 0.8 to 48 knots; 1 to 10 Beaufort
Air Volume	0 to 9999 CFM & CMM
Temperature	-4 to 140°F (-20 to 60°C)
Humidity	0 to 100%
Barometric Pressure	10.3 to 32 in Hg; 350 to 1100 hPa; 263 to 825 mm Hg
Accuracy
Air Velocity	±2% FS (+0.2% of Rdg m/s; +0.8% of Rdg km/hr; +0.4% of Rdg mph and knots; +40% of Rdg fpm)
Relative Humidity	20 to 80%: 3.5%; 0 to 20% and 80 to 100%: 5%
Temperature	±1.8°F; ±1°C
Barometric Pressure	±0.1 in Hg; ±3 hPa; ±1.5 mm Hg
Resolution
Air Velocity	0.1 (1 for ft/min and Beaufort)
Air Volume	1
Temperature	0.1°C
Humidity	0.1%
Barometric Pressure	0.1
Response Time
Air Velocity	2 seconds
Air Volume	2 seconds
Temperature	1 second
Humidity	5 minutes to stabilize
Barometric Pressure	1 minute
LCD Size	1.65" x 1.30" (42 x 33 mm)
Power Requirements	9 V alkaline battery, included, user replaceable
Battery Life	50 hours continuous use
Vane Diameter	1.18" (30 mm)
Cable Length	35.4" (90 cm)
Weight	9.2 oz (260 g)
Agency Approvals	CE

Manufacturer List Price:

$274.45

Product Details

Ranges
Air Velocity	79 to 4921 fpm, 0.4 to 25 m/s; 1.5 to 90 km/hr; 0.9 to 55 mph; 0.8 to 48 knots; 1 to 10 Beaufort
Air Volume	0 to 9999 CFM & CMM
Temperature	-4 to 140°F (-20 to 60°C)
Humidity	0 to 100%
Barometric Pressure	10.3 to 32 in Hg; 350 to 1100 hPa; 263 to 825 mm Hg
Accuracy
Air Velocity	±2% FS (+0.2% of Rdg m/s; +0.8% of Rdg km/hr; +0.4% of Rdg mph and knots; +40% of Rdg fpm)
Relative Humidity	20 to 80%: 3.5%; 0 to 20% and 80 to 100%: 5%
Temperature	±1.8°F; ±1°C
Barometric Pressure	±0.1 in Hg; ±3 hPa; ±1.5 mm Hg
Resolution
Air Velocity	0.1 (1 for ft/min and Beaufort)
Air Volume	1
Temperature	0.1°C
Humidity	0.1%
Barometric Pressure	0.1
Response Time
Air Velocity	2 seconds
Air Volume	2 seconds
Temperature	1 second
Humidity	5 minutes to stabilize
Barometric Pressure	1 minute
LCD Size	1.65" x 1.30" (42 x 33 mm)
Power Requirements	9 V alkaline battery, included, user replaceable
Battery Life	50 hours continuous use
Vane Diameter	1.18" (30 mm)
Cable Length	35.4" (90 cm)
Weight	9.2 oz (260 g)
Agency Approvals	CE

Manufacturer List Price:

$274.45
