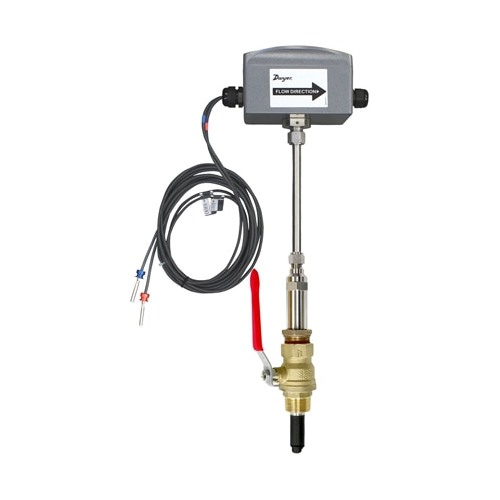

Dwyer, IEFB-HB-PG-T10-LCD, Insertion Electromagnetic Energy System with Display, BSPT Process Connections, PG 16 Gland

Features:

Save time and reduce installation costs with flow, temperature sensors and calculator delivered in one preprogrammed, complete package.
Maintain system energy efficiency with high performance accuracy that is maintained through changes in temperature, density or viscosity per universally accepted standard
Meet application requirements with field configurable setup displays (-LCD integral option or remote accessory A-IEF-DSP), which accommodate a variety of application configurations with one model through multiple display configurations i.e. pipe size, pipe material, liquid type, analog output, pulse/frequency output, alarm outputs, communication outputs, damping, and calibration factor
Quick and easy ordering and set up with Setup Wizard and installation tool that are simple to use and allow for precise installation
Reduced costs, long product life, and minimal maintenance requirements with no moving parts to wear or break and electrodes that discourage fouling
Required documents included with NIST traceable pass/ fail verification certificate included standard for Carbon Steel Schedule 40 pipes sized 100 mm (4 in), 150 mm (6 in), 200 mm (8 in)

Applications:

Monitoring chiller cooling output performance
Industrial boiler heating performance
Energy efficiency monitoring
Optimization of heat energy performance
Commercial and residential heat energy consumption and metering
District heating and cooling monitoring
Energy cost allocation monitoring

The Series IEFB is a field-adjustable insertion thermal energy meter that uses electromagnetic technology to accurately and reliably measure fluid velocity and energy consumption. The flowmeter is simple to install and is adjustable to fit pipe sizes from 100 mm to 900 mm (4 in to 36 in). The IEFB incorporates a temperature meter and a calculator into a single unit. The LCD display provides clear readings of the meter's values, including temperature and energy consumption, making it ideal for installation on chillers, boilers, and other heating and cooling applications. In addition, it offers several output options, including selectable BACnet MS/TP or Modbus® RTU communications protocol over 2-wire RS-485 and standard analog, frequency, and alarm outputs. Furthermore, the superior performance of the IEFB keeps annual operating costs at a minimum, thanks to its combination of high measuring accuracy and long lifetime.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Accuracy	± 1 % RDG
Accuracy Detail	High accuracy 4 to 10" (100 to 250 mm) pipe; 1% of reading, High accuracy units: ± 0.5% of reading at calibrated velocity, ± 1% of reading from 2 to 20 ft/s (0.6 to 6 m/s) ± 0.02 ft/s (± 0.006 m/s) at < 2 ft/s (0.6 m/s); Standard accuracy units: ± 1% FS
Applications	Boilers, Energy Management Systems, Oil, Refrigeration, Refrigeration Equipment
Compliance	BTL
Conductivity	> 20 µS/cm
Control Output	Alarm
Data Interface	N/A
Display Note	2 x 2" (50 x 50 mm) Graphic LCD with Backlight
Display Size	71 mm (2.8 in)
Display Type	LCD
Electrical Connection	Cable Gland with Screw Terminal block
Enclosure Ratings	IP66, NEMA Type 4X
External Probe Lead Length	3 m (10 ft)
Impedance	4 to 20 mA: 536 Ω; 5V: 500 Ω; 10V: 1.27k Ω
Linear Flow Rate, Max	20 ft/s
Linear Flow Rate, Min	0 ft/s
Materials	Aluminum
Materials, Wetted	Polymer, Silicone, Stainless Steel
Media Compatibility	Acid Solutions, Conductive Liquids, Saltwater
Operating Temperature, Max	158 °F
Operating Temperature, Min	-4 °F
Output Detail	(1) Analog: 4-20 mA, 0-5 V, 0-10 V or 2-10 V (display selectable); (1) Pulse/Frequency: 0-15 V peak pulse, 0 to 500 Hz or scalable pulse output (display selectable); (2) Alarm: (1) Empty pipe detection or minimum/maximum velocity, (display selectable); (1) Reverse flow output indication
Output Signal	Current, Voltage, DC Pulse
Pipe Size, Max	10 in
Pipe Size, Min	4 in
Pressure Drop Note	< 0.1 psi at 12 ft/s in 4" (<0.01 bar at 3.7 m/s in 100 mm) and Larger Pipe
Pressure Drop, Max	0.1 psi
Pressure Limits	Up to 400 psi
Process Connection Size	1 in
Process Connection Type	BSPT Male
Process Temperature, Max	250 °F
Process Temperature, Min	15 °F
Relative Humidity	10 to 90% Non-Condensing
Resistance Note	Matched 4 Wire Platinum RTD's
Storage Temperature, Max	185 °F
Storage Temperature, Min	-40 °F
Straight Run Requirements	>10 Diameter Upstream, >5 Diameter Downstream
Supply Power Note	12 to 42 Vdc, 0.25 A at 24 Vdc; 12 to 36 Vac
Supply Power Type	AC/DC
Supply Voltage	12 to 42 Vdc, 12 to 36 Vac
Temperature Compensation	140 to 220°F < 2% error over ± 30°F Change , 40 to 70°F < 2% error over ± 10°F Change
Temperature Probe Style	General Purpose Probe
Temperature Sensor Type	RTD

Manufacturer List Price:

$7,481.60

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Accuracy	± 1 % RDG
Accuracy Detail	High accuracy 4 to 10" (100 to 250 mm) pipe; 1% of reading, High accuracy units: ± 0.5% of reading at calibrated velocity, ± 1% of reading from 2 to 20 ft/s (0.6 to 6 m/s) ± 0.02 ft/s (± 0.006 m/s) at < 2 ft/s (0.6 m/s); Standard accuracy units: ± 1% FS
Applications	Boilers, Energy Management Systems, Oil, Refrigeration, Refrigeration Equipment
Compliance	BTL
Conductivity	> 20 µS/cm
Control Output	Alarm
Data Interface	N/A
Display Note	2 x 2" (50 x 50 mm) Graphic LCD with Backlight
Display Size	71 mm (2.8 in)
Display Type	LCD
Electrical Connection	Cable Gland with Screw Terminal block
Enclosure Ratings	IP66, NEMA Type 4X
External Probe Lead Length	3 m (10 ft)
Impedance	4 to 20 mA: 536 Ω; 5V: 500 Ω; 10V: 1.27k Ω
Linear Flow Rate, Max	20 ft/s
Linear Flow Rate, Min	0 ft/s
Materials	Aluminum
Materials, Wetted	Polymer, Silicone, Stainless Steel
Media Compatibility	Acid Solutions, Conductive Liquids, Saltwater
Operating Temperature, Max	158 °F
Operating Temperature, Min	-4 °F
Output Detail	(1) Analog: 4-20 mA, 0-5 V, 0-10 V or 2-10 V (display selectable); (1) Pulse/Frequency: 0-15 V peak pulse, 0 to 500 Hz or scalable pulse output (display selectable); (2) Alarm: (1) Empty pipe detection or minimum/maximum velocity, (display selectable); (1) Reverse flow output indication
Output Signal	Current, Voltage, DC Pulse
Pipe Size, Max	10 in
Pipe Size, Min	4 in
Pressure Drop Note	< 0.1 psi at 12 ft/s in 4" (<0.01 bar at 3.7 m/s in 100 mm) and Larger Pipe
Pressure Drop, Max	0.1 psi
Pressure Limits	Up to 400 psi
Process Connection Size	1 in
Process Connection Type	BSPT Male
Process Temperature, Max	250 °F
Process Temperature, Min	15 °F
Relative Humidity	10 to 90% Non-Condensing
Resistance Note	Matched 4 Wire Platinum RTD's
Storage Temperature, Max	185 °F
Storage Temperature, Min	-40 °F
Straight Run Requirements	>10 Diameter Upstream, >5 Diameter Downstream
Supply Power Note	12 to 42 Vdc, 0.25 A at 24 Vdc; 12 to 36 Vac
Supply Power Type	AC/DC
Supply Voltage	12 to 42 Vdc, 12 to 36 Vac
Temperature Compensation	140 to 220°F < 2% error over ± 30°F Change , 40 to 70°F < 2% error over ± 10°F Change
Temperature Probe Style	General Purpose Probe
Temperature Sensor Type	RTD

Manufacturer List Price:

$7,481.60

Note

Note: Please read description carefully. Do not base your order on the picture presented.

Reviews
