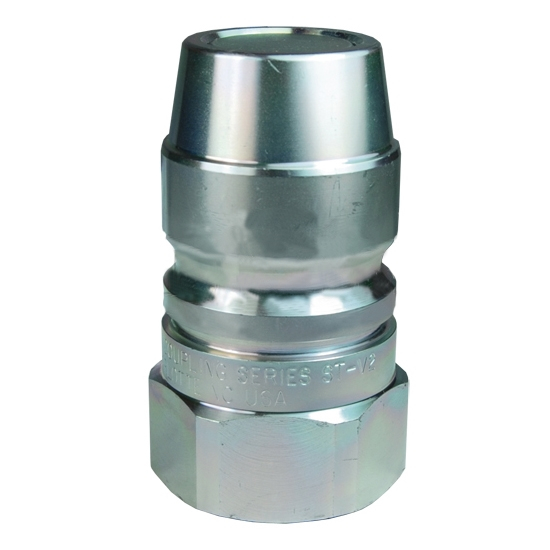

Dixon Valve ST8BF8-V2 ST BSPP DQC Snap-Tite 71 Female Plug

Dixon, ST8BF8-V2, ST-Series 1" - 11-1/2 BSPP DQC Snap-Tite 71 Interchange Female Plug

Construction

• Machined components are manufactured using solid bar stock
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
• Steel componentry is plated using ROHS Compliant Trivalent Chrome
• Steel nipples are hardened to provide heavy duty performance
• Incorporates PTFE or TPC-ET anti-extrusion rings to protect seal components from dynamic impulse damage

Available Options

• Contact Us for all available option adders
• Oxy-clean treatment is available

Compatibility & Interchange Data

• Interchangeable with Snap-Tite 71-Series

Note

• Minimum burst pressure ratings were established under laboratory conditions using a Static Burst Unit (SBU). For high impulse applications and to meet Det Norske Veritas (DNV) compliance, the burst pressure must be divided by four (4) to ensure a 4:1 safety factor during system operation
