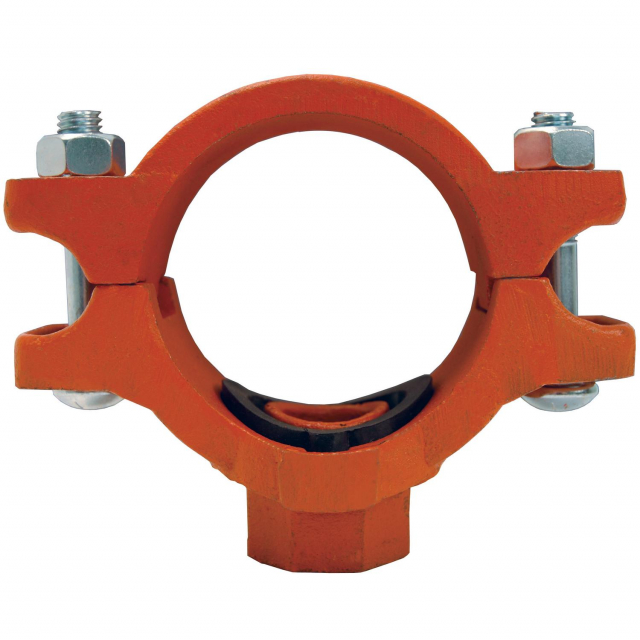

Dixon Valve MT20150 T-Series Grooved Mechanical Tee

Dixon, MT20150, T-Series 2" X 1 1/2" Nominal X Branch Grooved Mechanical Tee

Specifications

• Underwriters Listed
• Factory Mutual approved
• Bolts: 2
• Bolt Size: 3/8"
• Bolt Length: 2"
• Hole saw diameter: 1-3/4"

Features

• Provides a fast easy way to install a threaded connection along a length of pipe
• Comparable to Victaulic's #920 and Grinnell's #7045

Construction

• Rust inhibiting paint

Installation

• After drilling or cutting a hole in the pipe at the location of the branch connection, simply attach the clamps around the pipe for a leak-free threaded outlet connection.

Safety notes

• Pressure rating given at ambient temperature 70°F.
