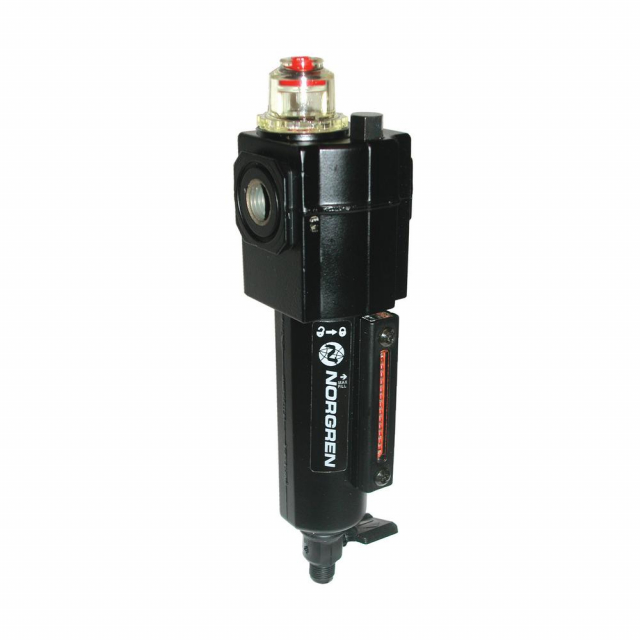

Dixon Valve L72M-3MB 1/4" Norgren Series 1 Micro-Fog Lubricator

Applications

• Micro-fog lubricators, identified by a red adjusting screw, are used for applications containing one or more points of lubrication, cylinders and multiple or single tools.

Use

• Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100°F

Features

• Metal Bowl
• 2 oz. reservoir
• Quick release bayonet bowl
• Micro-fog design delivers aerosol mist

How it works

• Air flow through the lubricator lifts oil from the reservoir to the sight-feed dome. Oil is dropped into the fog generator and atomized into a fine mist. Lightweight particles are delivered downstream for lubrication. Heavier particles fall back into the reservoir.
• The micro-fog lubricator delivers 10% of the oil drops visible through the transparent sight-feed dome.

Installation

• In-line or modular installation

Safety notes

• FRL's are designed for air service only, unless otherwise indicated.
• Micro-fog lubricators cannot be filled under pressure.
• Pressure rating given at ambient temperature 70°F.
• SCFM ratings at 90 PSIG inlet pressure
