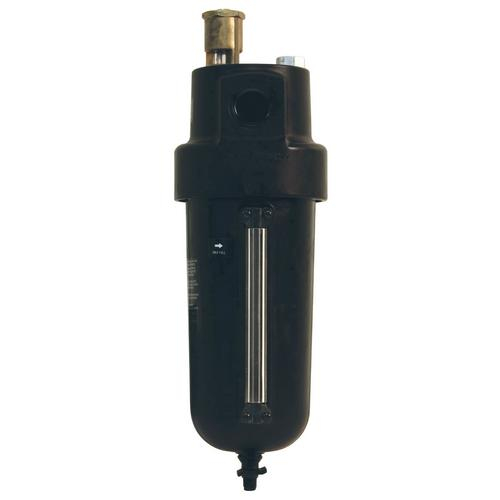

Dixon Valve L17-600APX 1/2" Norgren Series 1 Micro-Fog Lubricator

Applications

• Micro-fog lubricators, identified by a red adjusting screw, are used for applications containing one or more points of lubrication, cylinders and multiple or single tools.

Use

• Designed for use with alcohol or other anti-freeze agents when units are installed in cold temperature environments.

Features

• Metal Bowl with Sight Glass
• 1 qt. reservoir
• Oil level sight gauge
• High pressure dome with aluminum case and fluorocarbon O-Rings and seals; High pressure sight glass on bowls and metal petcock drain.
• Particle removal per ISO 8573-1, class 5 and class 3
• One turn threaded bowl attachment permits easy maintenance

How it works

• Air flow through the lubricator lifts oil from the reservoir to the sight-feed dome. Oil is dropped into the fog generator and atomized into a fine mist. Lightweight particles are delivered downstream for lubrication. Heavier particles fall back into the reservoir.
• The micro-fog lubricator delivers 10% of the oil drops visible through the transparent sight-feed dome.

Safety notes

• FRL's are designed for air service only, unless otherwise indicated.
• Micro-fog lubricators cannot be filled under pressure.
• Pressure rating given at ambient temperature 70°F.
• SCFM ratings at 90 PSIG inlet pressure
