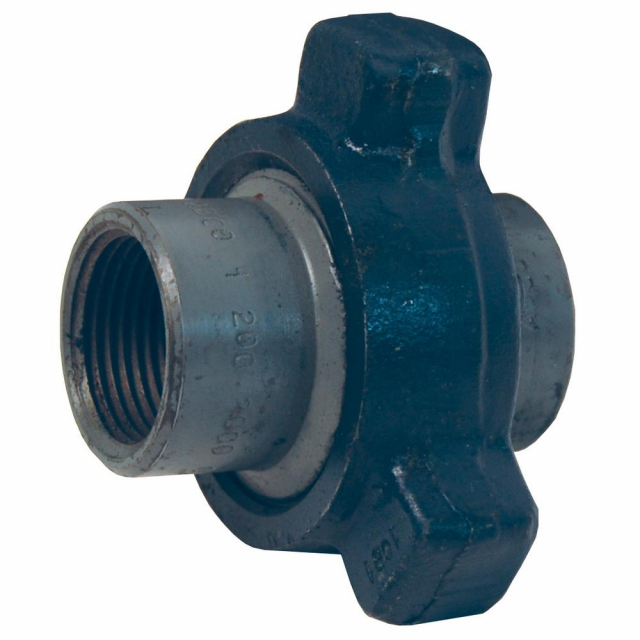

Dixon Valve HU200800 Hammer Union 200 Series

Use

• Used in general service applications running air, water, oil or gas up to 2,000 PSI NSCWP (non-shock cold working pressure)

Construction

• Grey sub, blue nut

Safety notes

• Hammer unions work at extremely high pressures. Mismatching components of one series with another (i.e. series 602 with series 1502) can lead to destruction of property, serious bodily injury or death.
• Non-shocking cold water pressure means that the rated value is the maximum pressure at ambient temperature: no spikes higher than this pressure, no instantaneous pressure increases (0-2000 PSIG in 1/4 of a second), ambient temperature 70°F
