Dixon Valve HTE4F4 HTE-Series Connect Under Pressure Plug

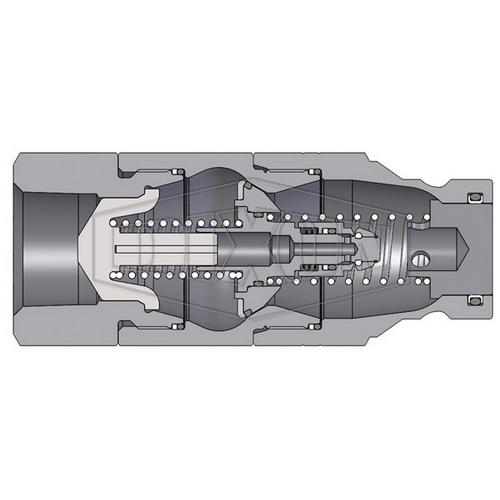

Dixon Valve & Coupling Company, HTE4F4, HTE-Series Connect Under Pressure Flush Face Female Plug

Features:

• Non-linear connection force at all pressures
• No maximum connection-pressure restrictions, up to 5000 PSI
• Head pressure or valve bleed-by has minimal effect on connection force
• Less susceptible to system contamination
• Smooth connection action
• Connectable with trapped pressure on HTE half only
• Machined components are manufactured using solid steel bar stock
• Steel componentry is plated using a ROHS Compliant Zinc Nickel process providing superior corrosion resistance
• Stainless steel retaining rings and springs maximize corrosion resistance and extend service life
• Nipples are hardened to provide resistance to brinneling during impulse service
• Molded Polyurethane valve seals, with a temperature range of-65°F to +212°F (-54°C to +100°C)
• Ancillary nipple seals are Nitrile (Buna-N), with a temperature range of-40°F to +250°F (-40°C to +121°C)

Compatibility & Interchange Data:

• Parker FEC-Series, Stucchi APM-Series, Faster 3FFH-Series
• Conforms to ISO16028
• For use with HTZ or HT Series couplers
