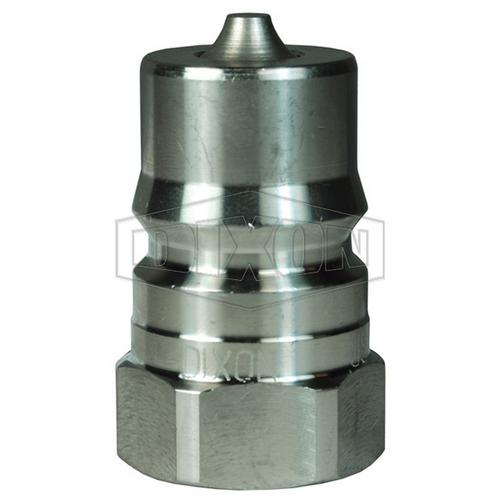

Dixon Valve & Coupling Company, HS3BF3-S, HS-Series ISO-B Steam Interchange Female Plug

Applications:

Features:

Machined components are manufactured using solid bar stock
Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
Special high-temp EPDM O-rings designed for steam service
Maximum working pressure has been calculated using standard saturated steam at 194°C (382°F) for general purpose continuous service.
Warning: Do not disconnect under pressure!

Compatibility & Interchange Data:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Material	303 Stainless Steel
Thread	Female BSPP
Thread Size	3/8"-19
Maximum OD	0.97" (24.6 mm)
Body Size	3/8"
Hex	7/8"
Length	1.70" (43.2 mm)
Pressure Rating	Rated to 200 PSI gauge saturated steam 382°F (194°C)
Temperature Range	-70°F to +400°F (-57°C to +204°C)
Optional Pkg/Box Qty	10

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Material	303 Stainless Steel
Thread	Female BSPP
Thread Size	3/8"-19
Maximum OD	0.97" (24.6 mm)
Body Size	3/8"
Hex	7/8"
Length	1.70" (43.2 mm)
Pressure Rating	Rated to 200 PSI gauge saturated steam 382°F (194°C)
Temperature Range	-70°F to +400°F (-57°C to +204°C)
Optional Pkg/Box Qty	10
