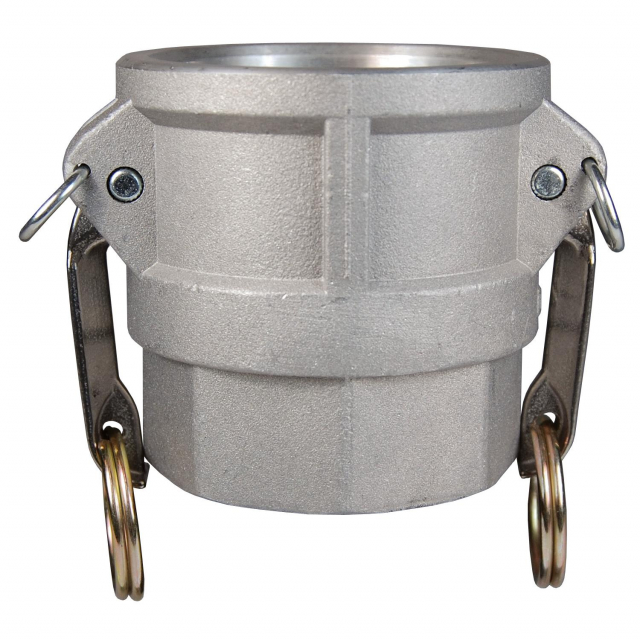

Dixon Valve G400-D-ALSI Global Cam & Groove Type D Coupler

Dixon, G400-D-ALSI, 4" Global Cam & Groove Type D Coupler with Stainless Steel Handles x Female NPT

Applications

• Designed for use with liquids

Specifications

• Designed to interchange with all products produced to A-A-59326D

Features

• Made to Dixon specifications and branded Dixon

Construction

• Buna seals

How it works

• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.

Safety notes

• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F with a standard seal installed.
