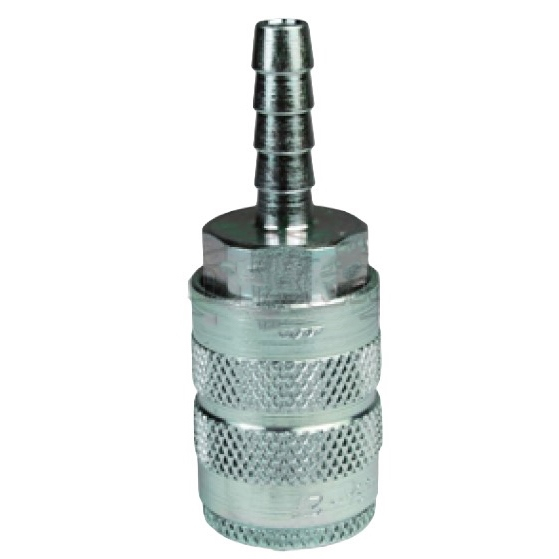

Dixon Valve F-4FS4 F-Series 1/2" x 1/2" Pneumatic Steel Coupler

Dixon Valve, F-4FS4, F-Series 1/2" x 1/2" Pneumatic Manual Standard Hose Barb Steel Coupler with FKM Seal

Features:

• Compatibility and Interchange Data: Foster 3, 4, 5 and 6 Series, Hansen 31000, 400 and 500.
• Parker 20 - Series Automatic Interchange.
• Connected steel coupler and steel plug.
• 500 PSI (35 bar) Maximum Working and 15,500 PSI (1,070 bar) Burst.
• Can be used with DQC J-series Automotive plugs.
• Machined components are manufactured using solid bar stock.

Notes:

• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
• Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
• Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.

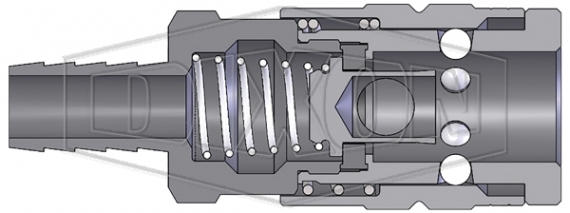

Constructions:
