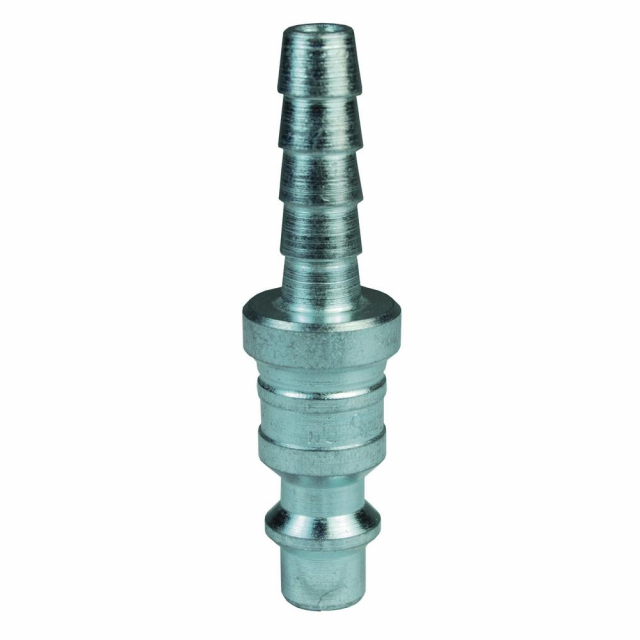

Dixon Valve D4S3 DF-Steel DQC Industrial Plug

Dixon, D4S3, DF-Series 1/2" Steel DQC Industrial Plug Standard Hose Barb 3/8" ID

Specifications

• Rated pressure when connected with Brass D-Series Automatic Couplers: 500 PSI (35 bar) Maximum Working and 14,000 PSI (965 bar) Burst
• Rated pressure when connected with Steel F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 15,500 PSI (1,070 bar) Burst

Construction

• Machined components are manufactured using solid bar stock
• Steel componentry is plated using ROHS Compliant Trivalent Chrome

Compatibility & Interchange Data

• Foster 3, 4, 5 and 6 Series
• Parker 30 - Series Automatic Interchange & Parker 20-Series Manual Interchange
• Hansen 3000, 4000, 5000 and 6000 & Hansen 1000, 400 and 500

How it works

• To disconnect, begin by holding the hose on the nipple side with three of your fingers, leaving your thumb and index finger free
• Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand
• After pulling the sleeve, the nipple will move out of the coupler slightly. Continue to hold the hose and coupler sleeve until all air is fully exhausted
• After the line is fully exhausted, you are able to safely separate the nipple from the coupler

Safety notes

• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure
• Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application
• Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
