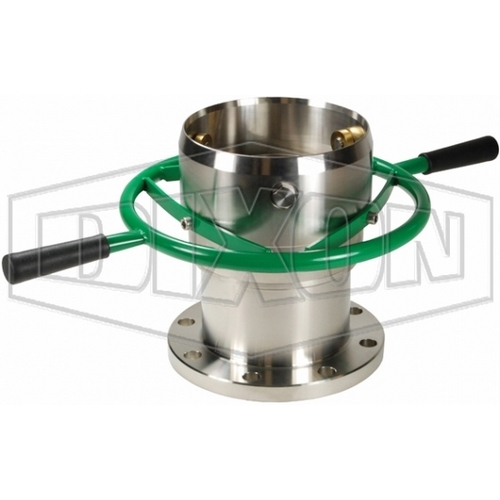

Dixon Valve, CRYDDC600SSFL, MannTek 6" Cryogenic Dry Disconnect Coupler, Hose Unit x 150# Flange
Features:
- Single action operation uses a straightforward turning motion to connect the couplings and open the flow path
- Safe and reliable: valve cannot be opened until the unit is coupled and it closes automatically when disconnecting, eliminating spills
- Used with a wide range of cryogenic liquefied gases without the risk of cross-connection due to human error
- Meet requirements for USCG 16715 CG-OES Policy Letter No. 02-15 use of dry disconnects and breakaway coupling/self-sealing quick release
- Conforms to ISO/DTS 18683 dimensioned for dry disconnects used for bunkering
- Meets MSC 95/3/4 (IGF Code) Section 8.5 Requirements for bunkering system
- Meets the Society For Gas as a Marine Fuel (SGMF) Safety Guidelines for Bunkering
- DNV, NKK, and BV type approved
Applications:
- Container discharge
- Fuel bunkering
- Loading/unloading of tank trucks, rail cars, and ship tankers, over 6,000 LNG fueling operations since 2013
- Vapor recovery lines
Note: Dixon's couplings and retention devices are designed to work safely for their intended use. The selection of the proper hose, coupling, and retention device, and the proper application of the coupling to the hose are of utmost importance. Users must consider the size, temperature, application, media, pressure, and hose and coupling manufacturer's recommendations when selecting the proper hose assembly components. Dixon recommends that all hose assemblies be tested in accordance with the Association for Rubber Products Manufacturers (ARPM) recommendations and be inspected regularly (before each use) to ensure that they are not damaged and have not become loose.

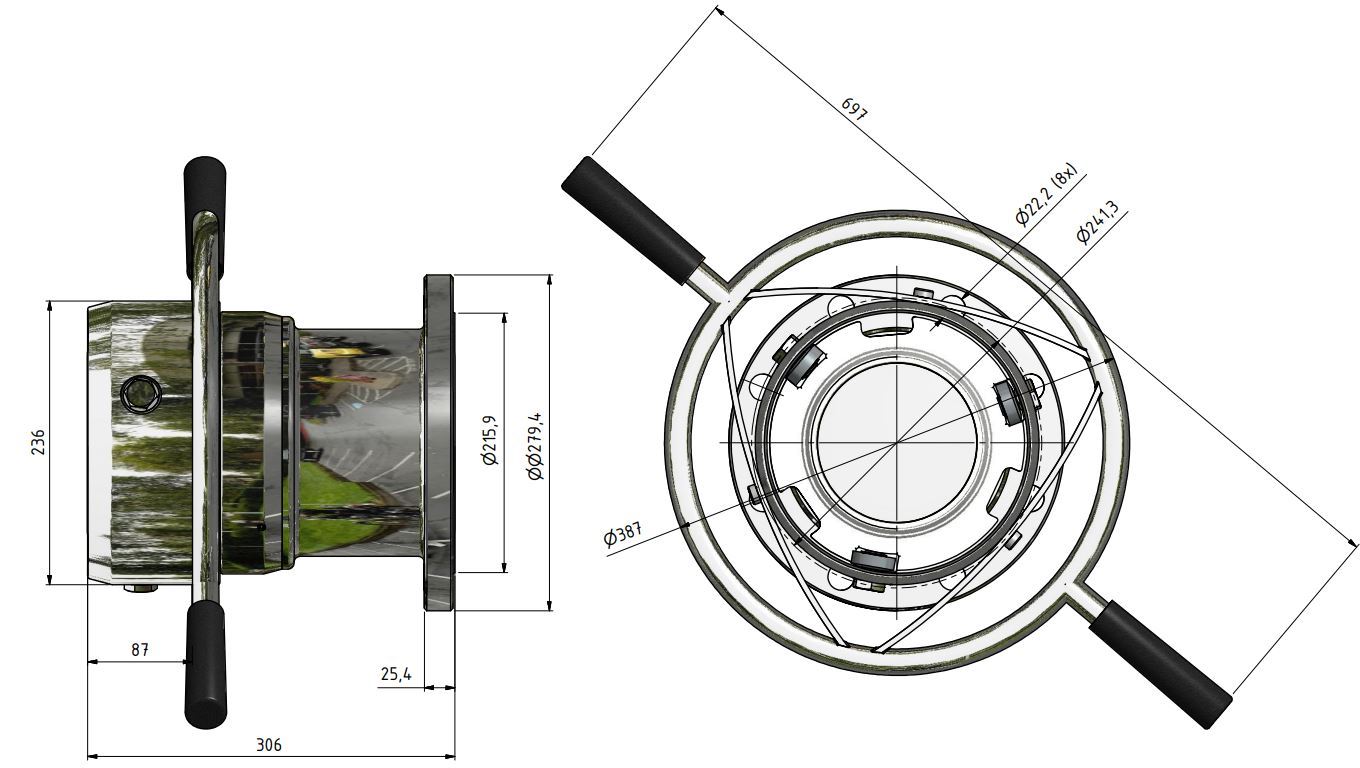

Dimensions:
