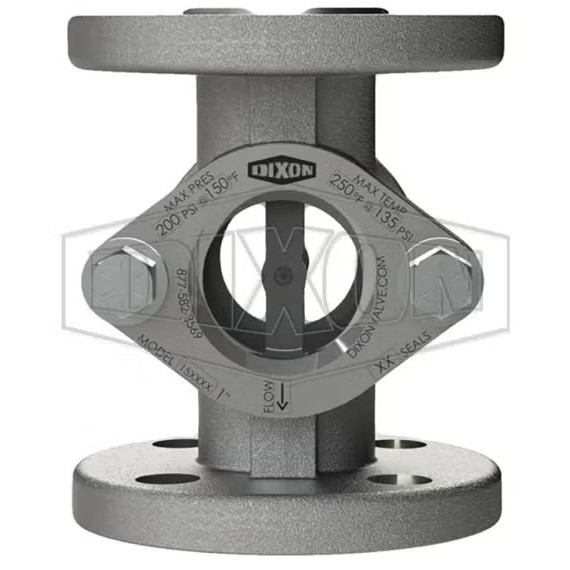

Dixon Valve, DB14SS00F-010NP, 14 Series 1" Flanged Sight Flow Indicator, No Indicator

Featyres:

No indicator, also known as a plain indicator

Applications:

Water, petroleum products, chemicals & solvents

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Size

1"

Material

316 Stainless Steel

Seal

Neoprene

Temperature Range

-20°F to 250°F

Length

4.7"

Dimension

Flange Diameter: 4.3"
(# Bolts) Bolt Hole Size: (4) 0.6"
Sight Opening Diameter: 1.5"
Raised Face Diameter: 2.0"
Flange Thickness: 0.6"

Pressure Rating

200 PSIG ar 150°F

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Size

1"

Material

316 Stainless Steel

Seal

Neoprene

Temperature Range

-20°F to 250°F

Length

4.7"

Dimension

Flange Diameter: 4.3"
(# Bolts) Bolt Hole Size: (4) 0.6"
Sight Opening Diameter: 1.5"
Raised Face Diameter: 2.0"
Flange Thickness: 0.6"

Pressure Rating

200 PSIG ar 150°F

Note: Please read description carefully. Do not base your order on the picture presented.
