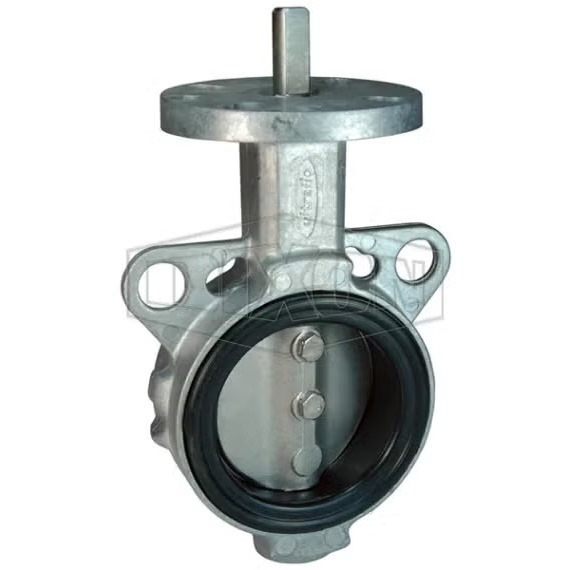

Dixon Valve 3-400-002500 Aluminum 3" One Piece Butterfly Valve

Dixon Valve, 3-400-002500, Aluminum 3" One Piece Butterfly Valve with Stainless Steel Disc

Features:

• Handles are high-strength 713 aluminum, with a retrogressive re-aging process that creates a stronger handle than the cast iron handles that are commonly used in the industry.
• Stainless discs are standard for superior wear resistance
• Aluminum body with stainless steel disc
• Polymer bushings
• FDA-approved Black Buna-N (Nitrile) seals and seats
• Stainless steel spring, stem, and locking lever pin
• Aluminum handle and throttling plate
• Designed to be placed between 2 ASME/ANSI 125 or 150 lb. flanges.

Applications:

• Butterfly valves are commonly used on dry bulk tankers to control the flow of product

Note:

• Flange gaskets are not required; the valve's elastomer seat also doubles as the flange gasket.
