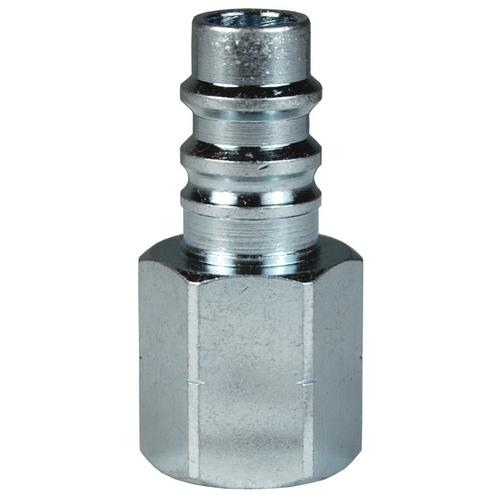

Dixon Valve CJ2F3-LG CJ-Series 1/4" DQC Steel Female Plug 3/8" NPTF

Specifications

• Rated pressure for connected Brass Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 9,500 PSI (655 bar) Burst

Construction

• Machined components are manufactured using solid steel bar stock
• Steel componentry is plated using ROHS Compliant Trivalent Chrome

Compatibility & Interchange Data

• European High-Flow Interchange
• 1/4" interchanges with Coilhose Megaflow.CEJN 320,and Rectus 25KA/26KA

Safety notes

• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure
