Dixon Valve C6146K2424SAE Flange SAE Port, O-Ring Type

Port Type: SAE, Fitting Type: O-Ring, Port Size: 1-1/2"
  • Brand Dixon Valve
  • Part # C6146K2424SAE
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Port Type:
Port Type: SAE
Fitting Type:
Fitting Type: O-Ring
Port Size:
Port Size: 1-1/2"

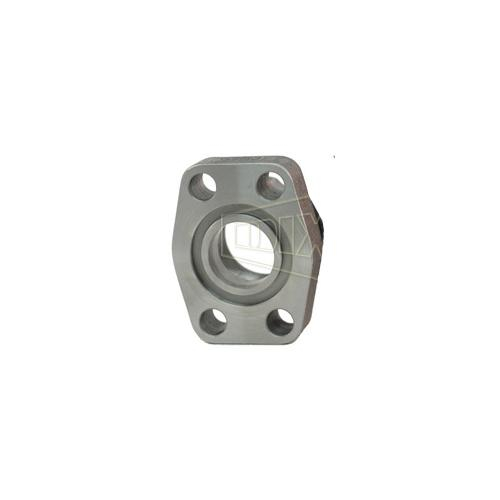

Dixon, C6146K2424SAE, Hydraulic 4-Bolt Flange SAE Port, O-Ring Type, 1-1/2"

Features:

  • Standard pressure
  • Flanges are constructed with an O-ring seal to eliminate leakage
  • Flat face flange must be used with O-ring flange
  • No bolt kit is included with flat face flange

Applications

Flange adapter for hydraulic systems make installation of components easier, especially in applications with limited space.

Construction

Pad size: 1-1/2"

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
StyleCode 61
Fitting TypeO-ring
MaterialCarbon Steel
Thread Size1-7/8"-12
Port1-1/2"
Maximum Operating Pressure3000 PSI (21 MPa)
TorqueGrade 8 UNC: 111 lb-ft
Weight Lb2.2900
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warningWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details
StyleCode 61
Fitting TypeO-ring
MaterialCarbon Steel
Thread Size1-7/8"-12
Port1-1/2"
Maximum Operating Pressure3000 PSI (21 MPa)
TorqueGrade 8 UNC: 111 lb-ft
Weight Lb2.2900
Note

Note: Please read description carefully. Do not base your order on the picture presented.
