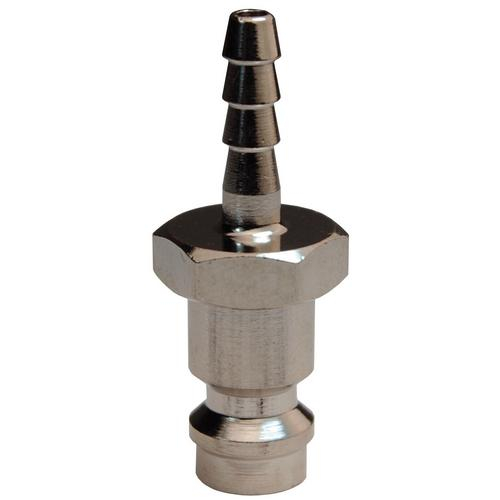

Dixon Valve BR1S2.83-B-E-7 BR-Series DQC Plug Hose Barb

Dixon, BR1S2.83-B-E-7, BR-Series 0.35" DQC Plug Hose Barb, Hose ID 0.354"

Construction

• Machined components are manufactured using solid brass bar stock
• Machined components are plated with chrome-over-nickel plating

Compatibility & Interchange Data

• Rectus 21KA, Tomco Series SC, CEJN Series 223

Safety notes

• Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application
• Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure
