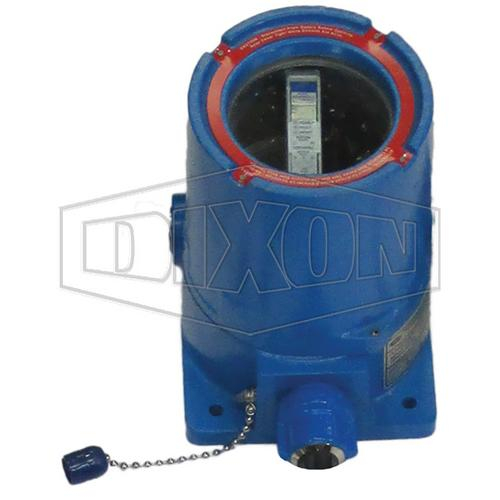

Dixon Valve A210B-24 A210 Spillguard Monitor, w/ By-Pass Timer, 24VDC

Specifications:

• Sensor suitable for Class I, II, III, Div 1, Groups A, B, C and D when used with supplied controller and cable lengths of 10,000' or less
• Cable connectors designed for repeated mating meet IP 65 mechanical and environmental specifications

Construction

• Wetted materials: 316 stainless steel and PTFE standard

Features:

• Rugged, explosion proof, weather, chemical and corrosion resistant
• LED status lights visible through glass cover
• Inserts into tank through standard 1/2" NPT fitting
• Probe can be portable or permanently installed in the vessel
• Laser engraved graduated rod with 1/4 graduations
• Probe-to-controller cable protected by stainless steel interlocking armor sheath and heavy duty latching connectors at both ends
• Fail safe design, unit trips in the event of an open or shorted cable or loss of power
• Controller housing NEMA 4X, Nema 7, Explosion Proof, Class I, II, Groups B, V and D
• Choice of capacitance, conductivity, ultrasonic, temperature or float sensors
• Output relay contacts 2 form C (2PDT) rated 2 amps at 120/240 VAC, 1 form C (SPDT) with optional latching circuit and reset switch
• Output relay de-energizes on high level, broken or shorted sensor cables or loss of power
• Sensor excitation open circuit voltage 8 VDC, short circuit current 8MA with built-in FM approved barrier

Safety notes

• WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
