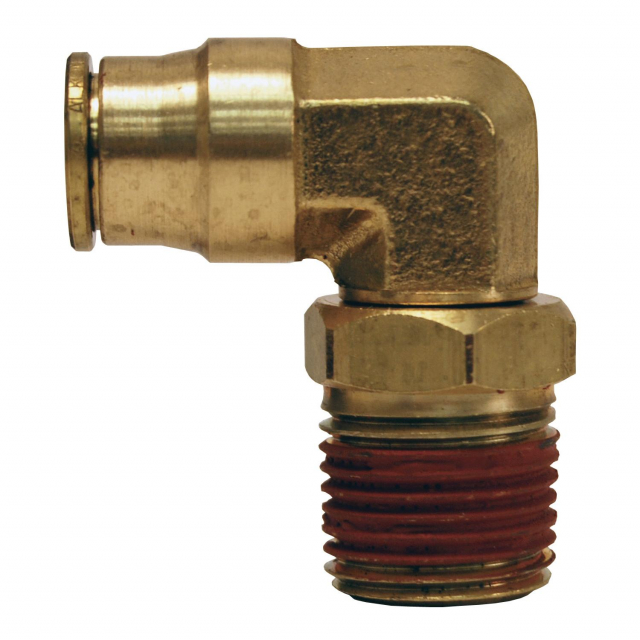

Dixon Valve 69S16X12 1/2" Brass Push-In Male Swivel Elbow

Dixon, 69S16X12, 1/2" Brass Push-In Male Swivel Elbow, Thread Size 3/8"

Use

• Suitable for vacuum service
• Working pressure: suitable for use up to the maximum working pressure of the plastic tubing used.

Features

• Positive seal: no leaks, after tubing is inserted, seal is made
• Secure tube retention: pulling on tubing only serves to tighten the connection
• Full flow design provides up to 60% more flow than conventional fittings with internal tube supports.
• Pre-applied PTFE based pipe sealant on all male pipe threads saves customer additional labor.

Construction

• Forged Brass

Installation

• Saves up to 75% of assembly time versus the standard compression fittings.
• Quick connect: simply push tubing in, no tools required.
• Quick disconnect: hold two fingers on insert and pull tubing out, no tools required.
• Reusable: connect and disconnect numerous times

Safety notes

• Fittings are suitable for use up to the maximum working pressure of the plastic tubing used
• WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
