Dixon Valve 3WF2-B-HN W Wingstyle Hex-Nut Coupler, NPTF

Dixon, 3WF2-B-HN, W-Series 3/8" Wingstyle Interchange Hex-Nut Coupler, 1/4" NPTF

Designed for applications requiring a coupling that can be connected under residual pressure with minimum spillage and air inclusion. Widely used on dump trailer wet-line hydraulic systems and oil field equipment. Not recommended for continuous hydraulic impulse applications.

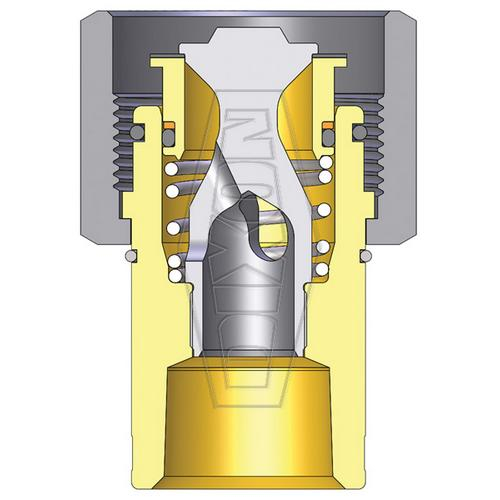

Construction

• Machined components are manufactured using solid bar stock
• Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
• Steel componentry is plated using ROHS Compliant Trivalent Chrome.
• Nitrile (Buna-N) seals are standard
• Main coupler valve has a bonded face-seal to improve seal integrity during pressurized connection/disconnection.
• Redundant O-Ring on the coupler body will engage nipple for secondary sealing support.
• Coupling has a PTFE back-up ring on the valve sleeve to extend service life.

Compatibility and Interchange Data

• Aeroquip 5100-Series, Parker 6100-Series
• Snap-Tite 78-Series, Faster Series-FB, Safeway S51-Series
