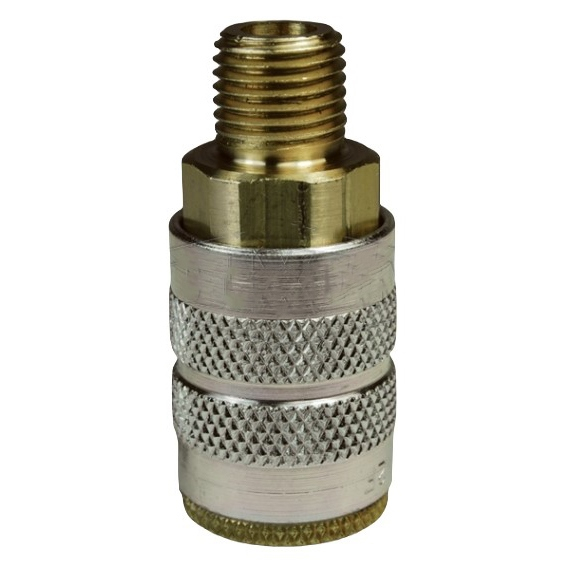

Dixon Valve 3FM2-B-ZV-LS F-Series 3/8" x 1/4" Male Threaded Coupler

Dixon Valve, 3FM2-B-ZV-LS, F-Series 3/8" x 1/4" Pneumatic Manual Male Threaded Coupler, Brass, Steel Valve, Lock Sleeve

Features:

• Machined components are manufactured using solid bar stock.
• Nitrile (Nitrile Rubber) seals are standard.
• Compatibility and Interchange Data: Foster 3, 4, 5 and 6 Series, Parker 30 - Series Automatic Interchange, Hansen 3000, 4000, 5000 and 6000.

Note:

• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
• Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling.
• To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.

Constructions:
