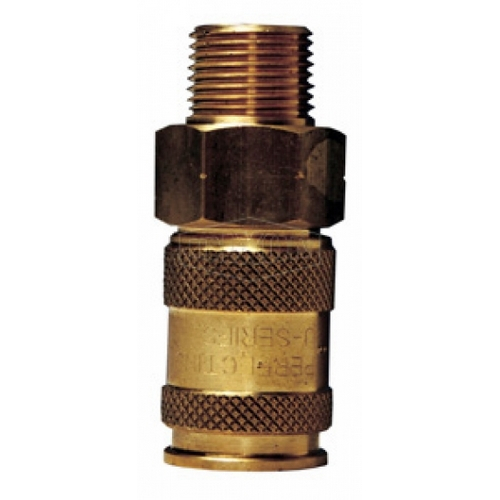

Dixon Valve 2UBM2-B U-Series Universal Pneumatic Male Coupler, 1/4"

Dixon Valve, 2UBM2-B, U-Series Universal Pneumatic Male Threaded Coupler

Features:

• Machined components are manufactured using solid bar stock.
• Stainless steel springs. Carbon steel balls and retaining rings.
• Valve components are machined from solid brass bar stock.
• Nitrile (Buna-N) seals are standard
• Rated pressure when connected with Steel DF Plug: 2,800 PSI (193 bar) Burst
• Rated pressure when connected with Steel CJ Plug: 9,500 PSI (655 bar) Burst
• Rated pressure when connected with Steel J Plug: 6,400 PSI (441 bar) Burst
• Rated pressure when connected with Steel M Plug: 4,300 PSI (297 bar) Burst

Notes:

• Many competitive Universal couplings are unable to match the performance capabilities of the Dixon U-Series. Although the universal coupler permits multiple series nipples to mate with one coupler, it is recommended to match like series couplers and nipples. When using a universal coupler, the lower performance rating between the coupler and the nipple must take precedence.
• Dry Air: Some pneumatic applications require the pressurized air to be 'dried' to ensure proper operation of equipment and/or application of product (ie. Auto body shops). It is best to match like series couplers and nipples in these applications. If it is necessary to use a Universal coupler, lube the seal and valve area regularly to ensure reliable service.
